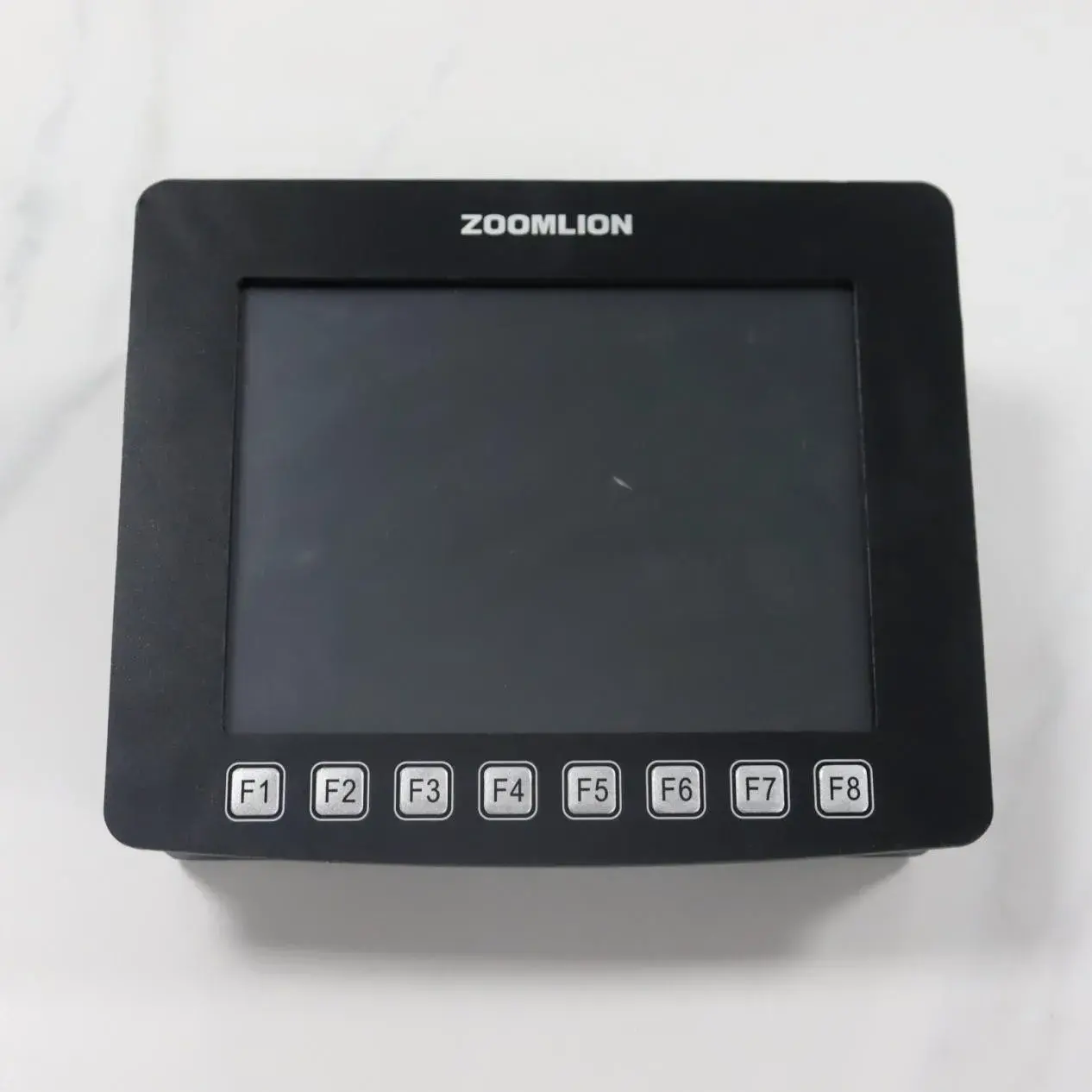

Zoomlion ZLDQ-8BA-6Q Construction Machinery LCD Display
Industrial-Grade Protection: IP65 dust and water resistance, wide temperature operating range, unaffected by construction site dust, rain, and extreme temperatures.
High-Definition Visibility: High-brightness LCD screen with clear readability in direct sunlight, supporting automatic/manual brightness adjustment.
Multi-Function Integration: Simultaneously supports CAN bus data display and multi-channel video input, compatible with reverse camera and equipment monitoring feeds.
Description
Tags
| Category | Specifications |
| Model | ZLDQ-8BA-6Q |
| Screen Size | 8 inches |
| Display Type | TFT LCD |
| Resolution | 800×600 |
| Brightness Range | 300~1000 cd/㎡ (adjustable) |
| Input Voltage | DC 9~36V (wide voltage compatibility) |
| Communication Interface | 2 x CAN Bus |
| Video Input | 2 x AV video (reverse priority support) |
| Protection Rating | IP65 (front) / IP54 (rear) |
| Mounting Method | Flush-mount / Panel-mount |
| Button Configuration | 8 programmable function keys (F1-F8) |
| Dimensions | 242mm × 202mm × 65mm |
| Compatible Models | Zoomlion truck cranes, mobile cranes, concrete pumps, etc. |
