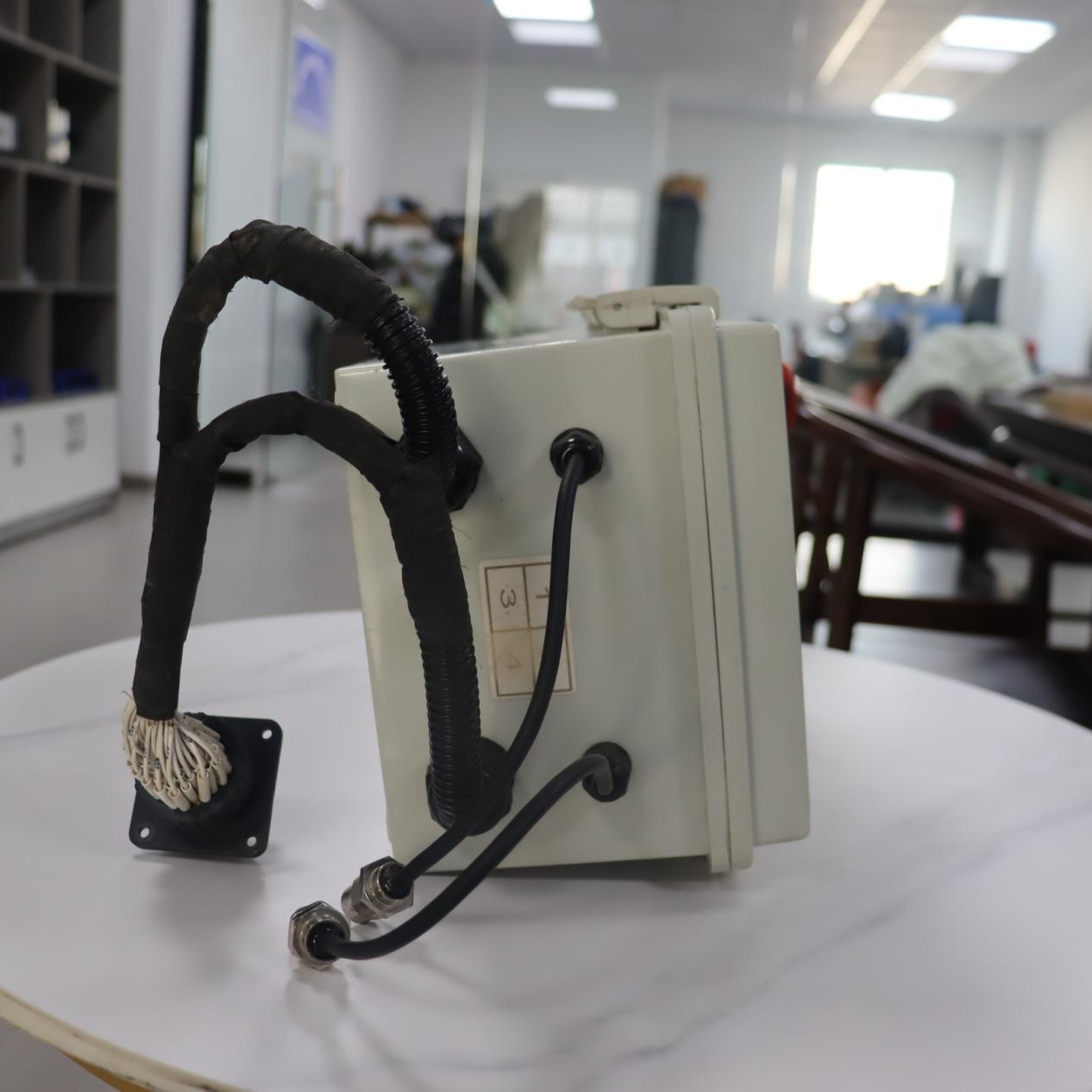

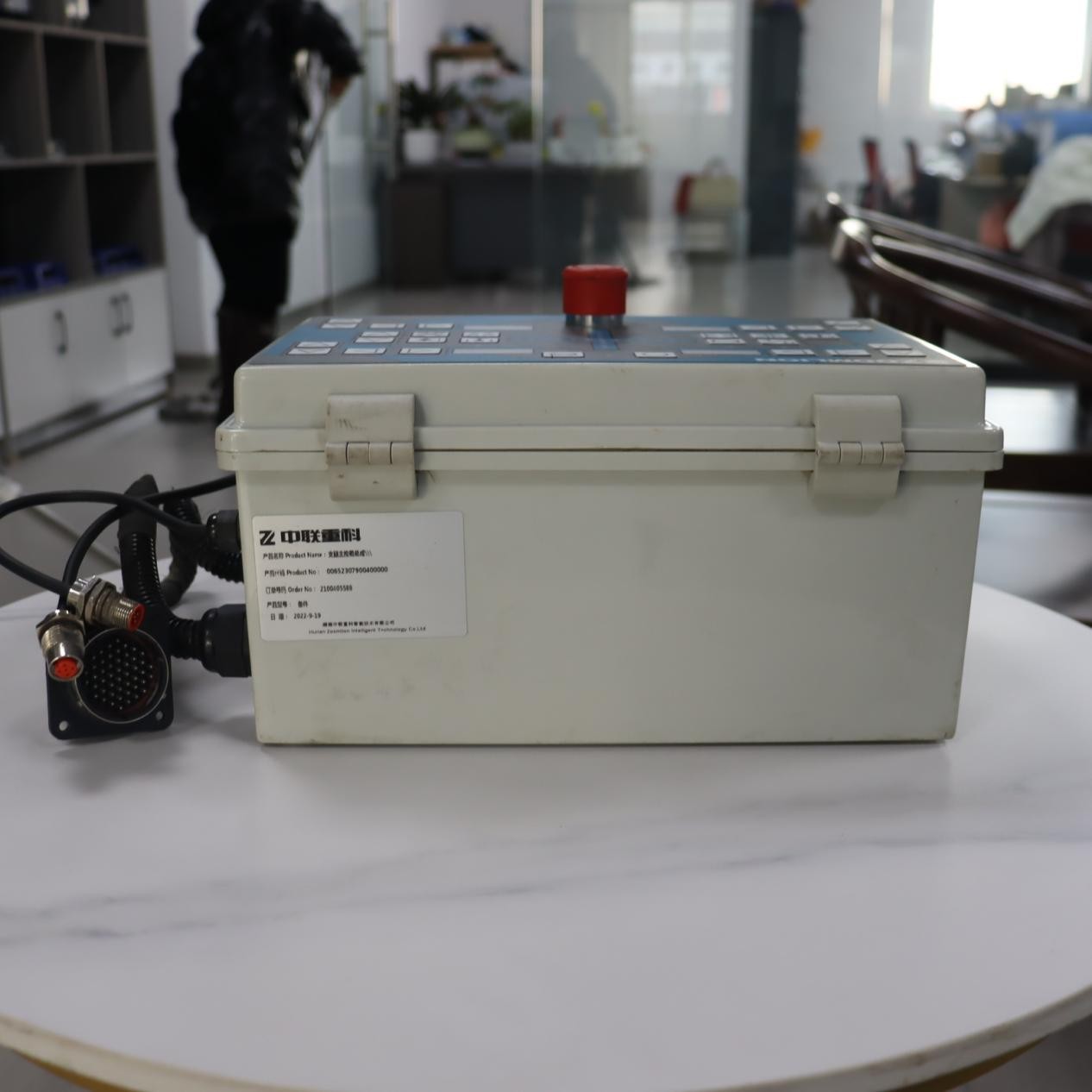

Zoomlion Outrigger Control Box Product Description
The Zoomlion Outrigger Control Box is a core control unit specially designed for construction lifting equipment, aerial work platforms, and other engineering vehicles. It integrates functions such as outrigger extension/retraction, leveling, and locking, with intuitive and reliable operation. It is a key component for ensuring stable equipment operation.
Description
Tags
Product Introduction
The Zoomlion Outrigger Control Box is a core control unit specially designed for construction lifting equipment, aerial work platforms, and other engineering vehicles. It integrates functions such as outrigger extension/retraction, leveling, and locking, with intuitive and reliable operation. It is a key component for ensuring stable equipment operation.
With an industrial-grade protective design, this control box supports stable operation in complex construction site environments. It can precisely drive outrigger movements to ensure the levelness and safety of equipment during construction.
Core Functions & Application Scenarios
| Function Module | Detailed Description | Typical Application Scenarios |
| Outrigger Extension/Retraction Control | Independently controls the extension and retraction of each outrigger, adapting to space requirements of different job sites | Narrow construction site operations, outrigger deployment on irregular ground |
| Automatic Leveling | Real-time detection of vehicle body level status, automatically fine-tunes outrigger height to keep equipment level | Construction on uneven outdoor ground, aerial work platform setup |
| Outrigger Lock Protection | Automatically locks outriggers once in position to prevent accidental retraction, with an emergency stop button for sudden situations | Operations in strong wind, long-term equipment deployment |
| Real-time Status Display | Shows outrigger extension length, horizontal inclination, and other data via digital tubes, with automatic alarm in case of faults | Daily equipment self-inspection, night construction status monitoring |
Technical Specifications
| Parameter Category | Specification |
| Operating Voltage | DC 24V (compatible with standard engineering vehicle power supply) |
| Control Channels | 4 independent outrigger controls + 1 master control |
| Communication Interface | CAN bus (supports linkage with vehicle control system) |
| Housing Material | High-strength ABS engineering plastic + aluminum alloy panel |
| Installation Method | Flush-mounted/wall-mounted optional |
Product Advantages
Intuitive Operation
Zoned button layout with graphical icons allows operators to use it without extensive training.
Safety Redundancy
Triple safety mechanisms including emergency stop, outrigger locking, and level alarm provide comprehensive protection from operation to hardware.
Original Equipment Compatibility
Developed exclusively for Zoomlion's full range of engineering vehicles, it perfectly matches the original hydraulic and electrical systems without additional debugging.
