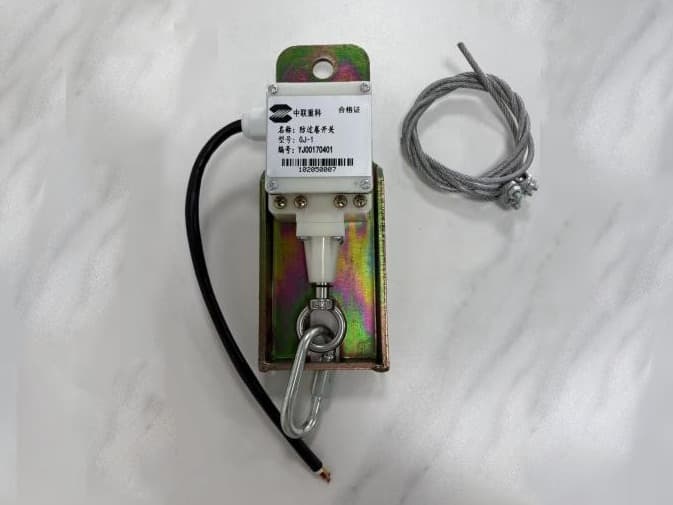

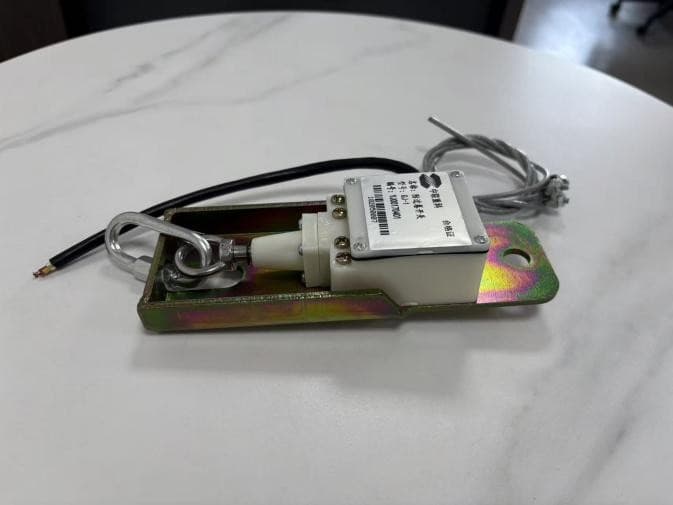

Zoomlion GJ-1 Overwind Protection Switch
The Zoomlion GJ-1 Overwind Protection Switch is an essential safety component for lifting equipment. When the hook reaches its upper limit position, the switch triggers instantly to cut off the hoist control circuit, preventing serious accidents such as steel wire rope breakage or hook fall caused by overwinding.
Description
Tags
| Item | Specification |
| Model | GJ-1 |
| Applicable Equipment | Truck Cranes, Crawler Cranes, and other construction machinery |
| Rated Operating Voltage | AC 380V / DC 24V |
| Rated Operating Current | 5A |
| Trigger Method | Steel wire rope tension trigger |
| Protection Grade | IP54 |
| Housing Material | Color Zinc-Plated Steel Plate (rust-proof) |
| Operating Temperature Range | -25℃ ~ +60℃ |
| Actuation Stroke | 10±2mm |
| Reset Method | Manual Reset |
| Wiring Type | 3-wire system (Power/Signal/Common) |
Designed and manufactured by Zoomlion, ensuring perfect compatibility with your original equipment and long-term reliability.
The precision tension-sensing mechanism ensures rapid response with an actuation error of less than 2mm.
The internal circuit features electromagnetic shielding, making it resistant to the complex electromagnetic environment of construction sites.
The color zinc-plated housing and silver-alloy contacts ensure a service life of over 100,000 actuation cycles.
Comes with a dedicated steel wire rope and mounting clips for quick connection to the drum or hook block.
Secure the switch body to a rigid structure near the crane jib head or drum, ensuring the trigger rope aligns with the hook’s movement direction.
Attach one end of the included steel wire rope to the switch’s trigger ring using the clip, and connect the other end to the hook block or drum’s limit stop.
Adjust the rope tension to ensure the switch activates accurately when the hook reaches its upper limit.
Follow your equipment’s electrical diagram strictly to ensure correct connection of the control circuit.
Inspect rope wear and switch sensitivity regularly, and perform a functional test every 3 months.
