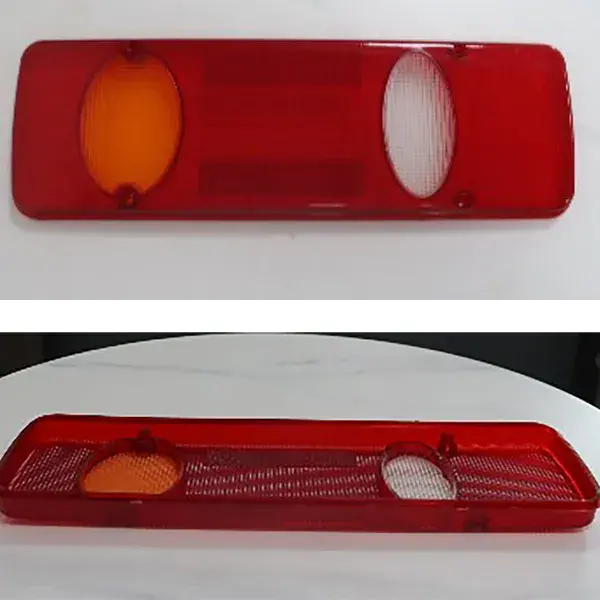

XCT Series Crane Tail Light Lens
This tail light lens is a dedicated replacement part for XCMG XCT series cranes. It is injection-molded from heavy-duty polycarbonate (PC) material, offering a precise fit with the original tail light assembly. With uniform light transmission, high impact resistance, and excellent aging resistance, it directly replaces cracked or faded original lenses, eliminating the need to replace the entire tail light unit. It is a cost-effective solution for repairing your crane’s rear lighting.
Description
Tags
Product Introduction
This tail light lens is a dedicated replacement part for XCMG XCT series cranes. It is injection-molded from heavy-duty polycarbonate (PC) material, offering a precise fit with the original tail light assembly. With uniform light transmission, high impact resistance, and excellent aging resistance, it directly replaces cracked or faded original lenses, eliminating the need to replace the entire tail light unit. It is a cost-effective solution for repairing your crane's rear lighting.
Core Specifications Table
| Item | Specifications |
| Product Name | XCT Series Crane Tail Light Lens (Left/Right Universal) |
| Compatible Models | XCMG XCT8, XCT12, XCT16, XCT20, XCT25 and the full range of XCT crane models |
| Material | Heavy-duty polycarbonate (PC) |
| Structure Design | Left amber (turn signal) + middle red (brake/parking light) + right white (reverse light) |
| Dimensions | Approx. 340mm (L) × 105mm (W) × 16mm (H) (1:1 mold matching original factory size) |
| Installation | Direct replacement for original lens, fits original clips and screw holes without drilling or modification |
| Color | Main red + left amber + right white |
| Package Contents | 1x Tail light lens (bulbs, sockets, and other accessories not included) |
| Warranty | 12-month warranty under normal use; free replacement for non-human damage |
Key Features
Original Factory Precision Fit
Molded 1:1 from the original tail light, ensuring clips and screw holes align perfectly for a hassle-free installation.
Durable and Tough
Heavy-duty PC material is more impact-resistant than standard lenses, withstanding construction site debris, sun, and rain without cracking or discoloring.
Excellent Light Transmission
Optically textured surface ensures even light diffusion, making brake and turn signals highly visible for enhanced safety.
Cost-Effective Solution
Replacing just the lens saves over 60% of the cost compared to replacing the entire tail light assembly.
Installation Tips
Disconnect the vehicle power supply first to avoid short circuits during installation.
Remove the tail light assembly with a tool and clean any remaining sealant from the old lens.
Align the new lens with the clips and screw holes, press firmly into place, then secure with screws.
For added water resistance, apply a small amount of sealant around the lens edge to prevent rainwater from seeping in.
