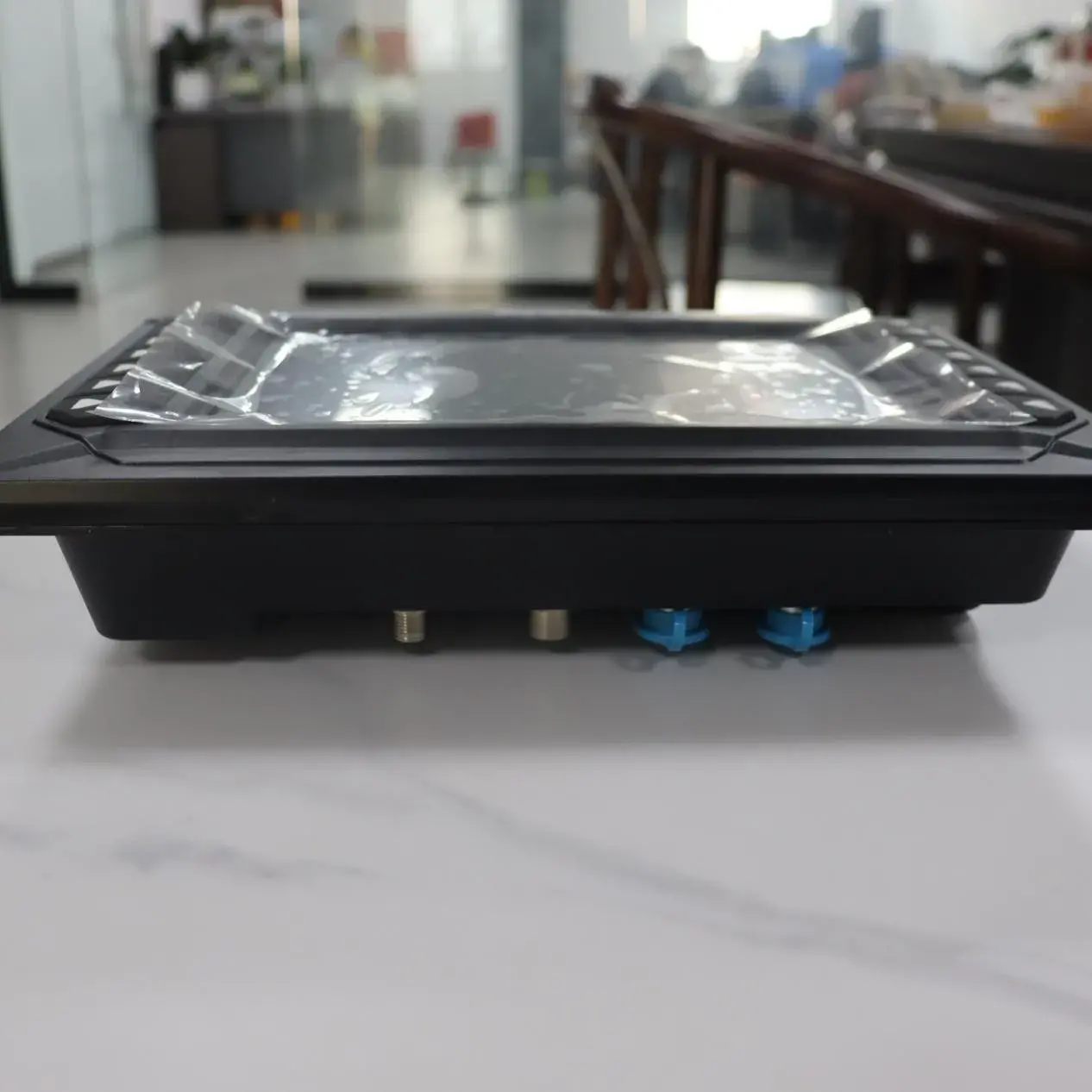

At its core is a 5.6-inch industrial-grade color LCD screen with 800×480 resolution, which presents real-time key data (load, boom radius, angle, rated load and moment) in vivid visuals that remain clear even under strong outdoor light. Complemented by a high-precision LMI algorithm, it features a scientific 3-stage safety mechanism: 90% rated load pre-warning, 100% alarm, and 104% emergency shutdown to cut off dangerous operations. To enhance operational safety and convenience, it also comes with a high-capacity black box for full-process data recording and power-off memory to retain parameters, simplifying accident analysis and enabling quick resumption after restart.
| Item | Details |
| Core Functions | Real-time color display of multi-dimensional data; 3-stage overload warning & emergency shutdown; black box recording; power-off memory; self-diagnosis; GPRS communication support |
| Display Specification | 5.6-inch color LCD screen, 800×480 resolution, high brightness, LED audible-visual indicators (power/warning/normal) |
| Protection Level | IP65 (dust-tight, water jet resistant, suitable for outdoor construction) |
| Power Supply Voltage | Dual power supply: DC 24V±20% / AC 220V±15%, low power consumption for stable operation |

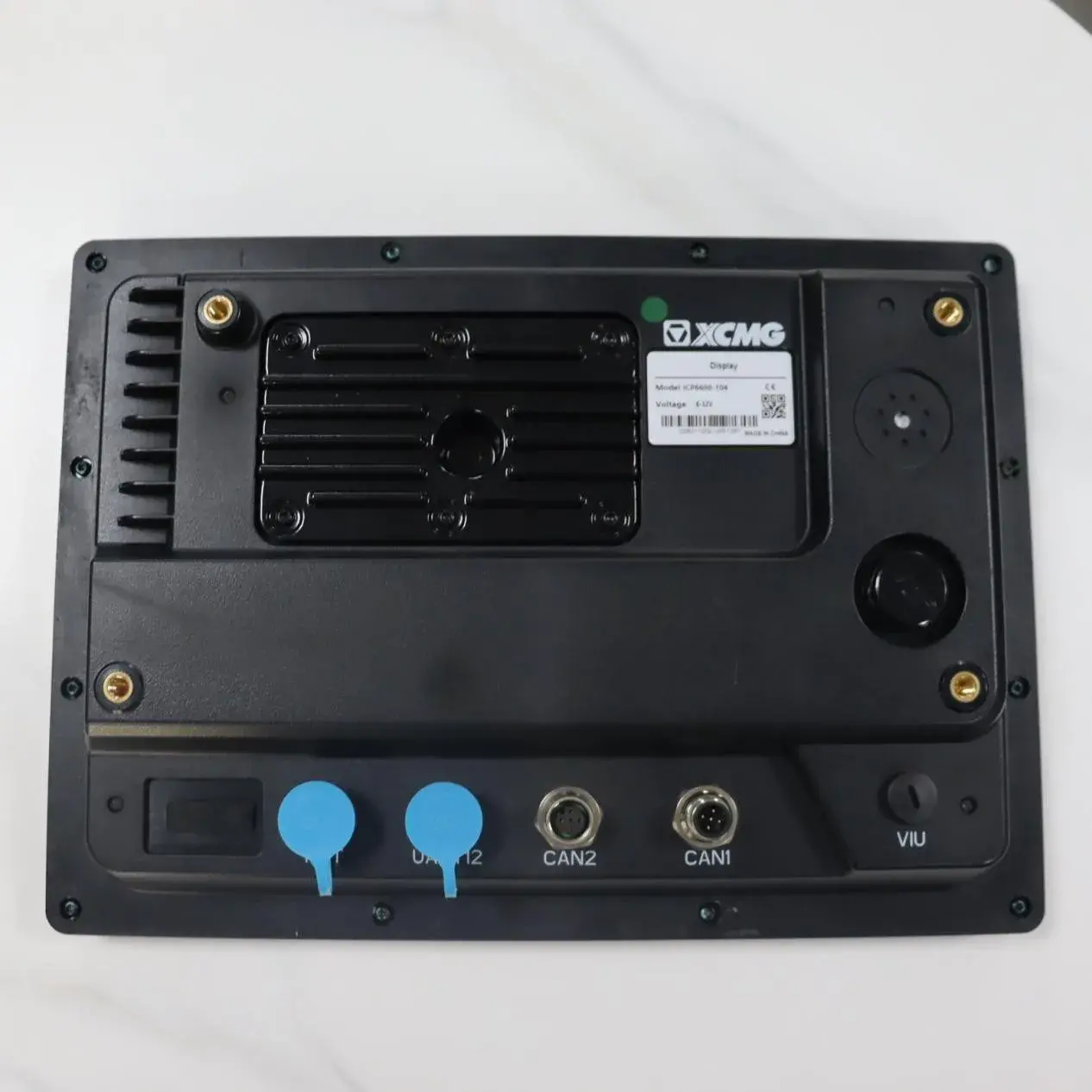

| Interface Type | XCMG original connector + expansion interfaces (RS485, USB), plug-and-play, support multi-device connection |
| Installation Method | Embedded installation, fits XCMG original position, no modification needed |
| Operating Temperature | -20℃~+70℃ (adapts to extreme cold, heat and humidity on construction sites) |
| Material & Craftsmanship | Aviation aluminum alloy shell, anti-EMI, anti-impact, anti-corrosion, suitable for complex construction environments |
