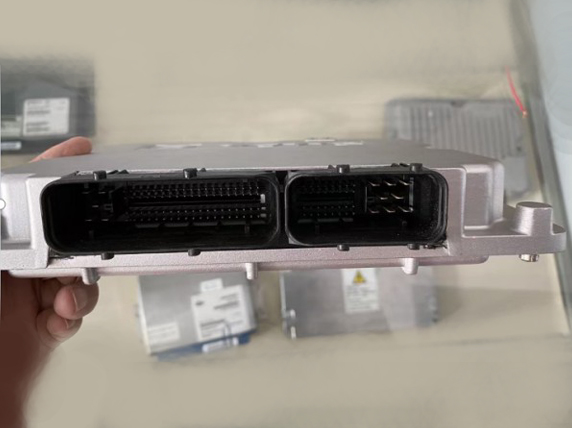

XCMG Construction Machinery Core Controller (ICM 7940)
This product is an original core controller exclusively supplied for XCMG Group, manufactured by Germany’s HIRSCHMANN. As the “electronic control brain” of construction machinery, it coordinates the engine, hydraulic system, sensors, and other components to achieve power management, motion control, condition monitoring, and fault diagnosis. Designed for XCMG’s main models such as excavators, cranes, and concrete pump trucks, it features high vibration resistance, wide temperature range, and strong electromagnetic compatibility to adapt to harsh working conditions.
Description
Tags
| Advantage | Details |
| Original Equipment Compatibility | Exclusively designed for XCMG machinery, no additional modification required, plug-and-play ready |
| Industrial-Grade Reliability | Operates in a wide temperature range of -40°C to +85°C, with vibration resistance meeting strict construction machinery standards |
| Precision Control | Integrates multiple I/O channels for real-time response to equipment motion commands |
| Self-Diagnosis Function | Built-in fault code storage and reporting for quick troubleshooting |
| Upgradable Software | Supports online programming and function expansion to adapt to equipment upgrades |
| Parameter Category | Details |
| Model | ICM 7940 |
| Manufacturer | HIRSCHMANN (Germany) |
| Operating Voltage | DC 18V ~ 36V |
| Hardware Version | HW |
| Software Version | 212103_V2.0 |
| Protection Rating | IP65 (Dust & Water Resistant) |
| Mounting Method | Bolt-on installation |
| Compatible Models | XCMG full range of excavators, truck cranes, concrete pump trucks, etc. |
| Connector Type | Standard industrial waterproof connectors |
| Operating Temperature | -40°C ~ +85°C |
Installation and programming must be performed by personnel with qualifications in construction machinery electronic control maintenance. Improper operation may cause equipment damage.
Ensure waterproof connectors are fully sealed during installation to prevent mud and water intrusion.
After replacing the controller, the calibration program for the corresponding model must be written using original diagnostic tools; otherwise, the equipment will not function properly.
Regularly check connector tightness to avoid poor contact caused by vibration.
