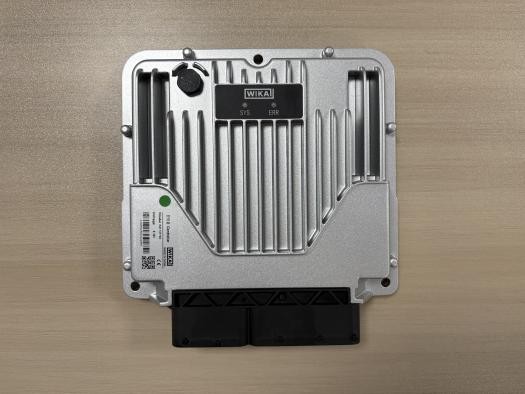

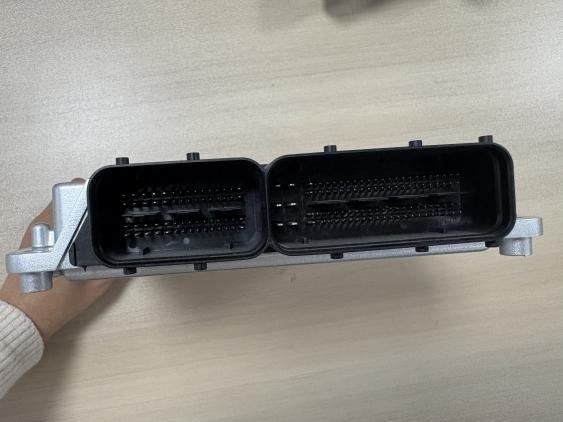

The WIKAI IMC T4775D Controller is a core control unit designed exclusively for construction machinery. It features highly integrated hardware and safety-focused control algorithms, serving as the “brain” for excavators, truck cranes, aerial work platforms, and other equipment. It enables precise regulation of power, hydraulic, and safety systems. Its aluminum alloy housing and wide-temperature design ensure stable long-term operation in extreme conditions from -40°C to +70°C, making it ideal for harsh job site environments.
| Item | Specification |
| Model | IMC T4775D |
| Operating Voltage | 8V ~ 36V DC (supports wide voltage fluctuations) |
| Processor | 32-bit dual-core safety MCU |
| Digital Inputs | 24 channels (supports 0-24V level signals) |
| Digital Outputs | 16 channels (relay/transistor output options) |
| Analog Inputs | 8 channels (compatible with 0-5V/4-20mA signals) |
| Communication Interfaces | CAN 2.0B × 2, RS485 × 1 |
| Protection Class | IP65 (dust and water resistant) |
| Operating Temperature | -40°C ~ +70°C |
| Storage Temperature | -40°C ~ +85°C |
| Certifications | ISO 13849-1 PLd, CE |
| Housing Material | Die-cast aluminum alloy (with heat dissipation fins) |
| Mounting Method | Bolt-on installation |
