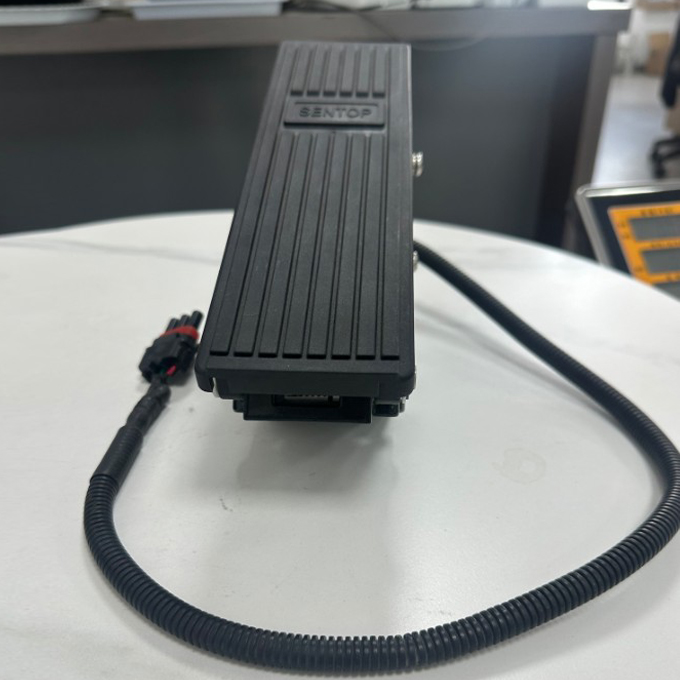

SENTOP BN60FCA Electronic Accelerator Pedal
The SENTOP BN60FCA Electronic Accelerator Pedal is engineered for forklifts, loaders, excavators, and other construction machinery, as well as electric vehicles. It uses non-contact Hall sensor technology to convert pedal movement into precise electrical signals, allowing for accurate control of engine speed or motor power.
Featuring dual redundant signal output and IP67 protection, this pedal delivers reliable performance in harsh working conditions and is a core control component for industrial vehicles.
Description
Tags
Product Overview
The SENTOP BN60FCA Electronic Accelerator Pedal is engineered for forklifts, loaders, excavators, and other construction machinery, as well as electric vehicles. It uses non-contact Hall sensor technology to convert pedal movement into precise electrical signals, allowing for accurate control of engine speed or motor power.
Featuring dual redundant signal output and IP67 protection, this pedal delivers reliable performance in harsh working conditions and is a core control component for industrial vehicles.
Core Specifications
| Item | Specification |
| Model | BN60FCA-S-R1-C(104) |
| Sensor Type | Hall effect sensor (conductive plastic potentiometer optional) |
| Output Signal | Dual 0–5V analog signals (redundant design) |
| Operating Voltage | DC 5V ±0.25V |
| Operating Current | ≤50mA |
| Protection Class | IP67 |
| Operating Temperature | -40°C ~ +85°C |
| Mechanical Life | ≥5,000,000 cycles |
| Mounting Type | Floor-mounted |
| Harness Length | Standard 1.2m (customizable) |
| Connector Type | Waterproof industrial connector |
Key Advantages
High Reliability
Non-contact Hall sensors eliminate mechanical wear, while dual redundant signals significantly reduce failure risks.
Environmental Resilience
Standardized mounting holes fit most industrial vehicle chassis, and corrugated tube harnessing provides excellent drag resistance.
Safety & Compliance
CE-certified to meet industrial vehicle electrical safety standards, protecting both equipment and operators.
Applications
Construction machinery (forklifts, loaders, excavators)
Special-purpose electric vehicles (sightseeing carts, sanitation trucks)
Agricultural machinery and port equipment
