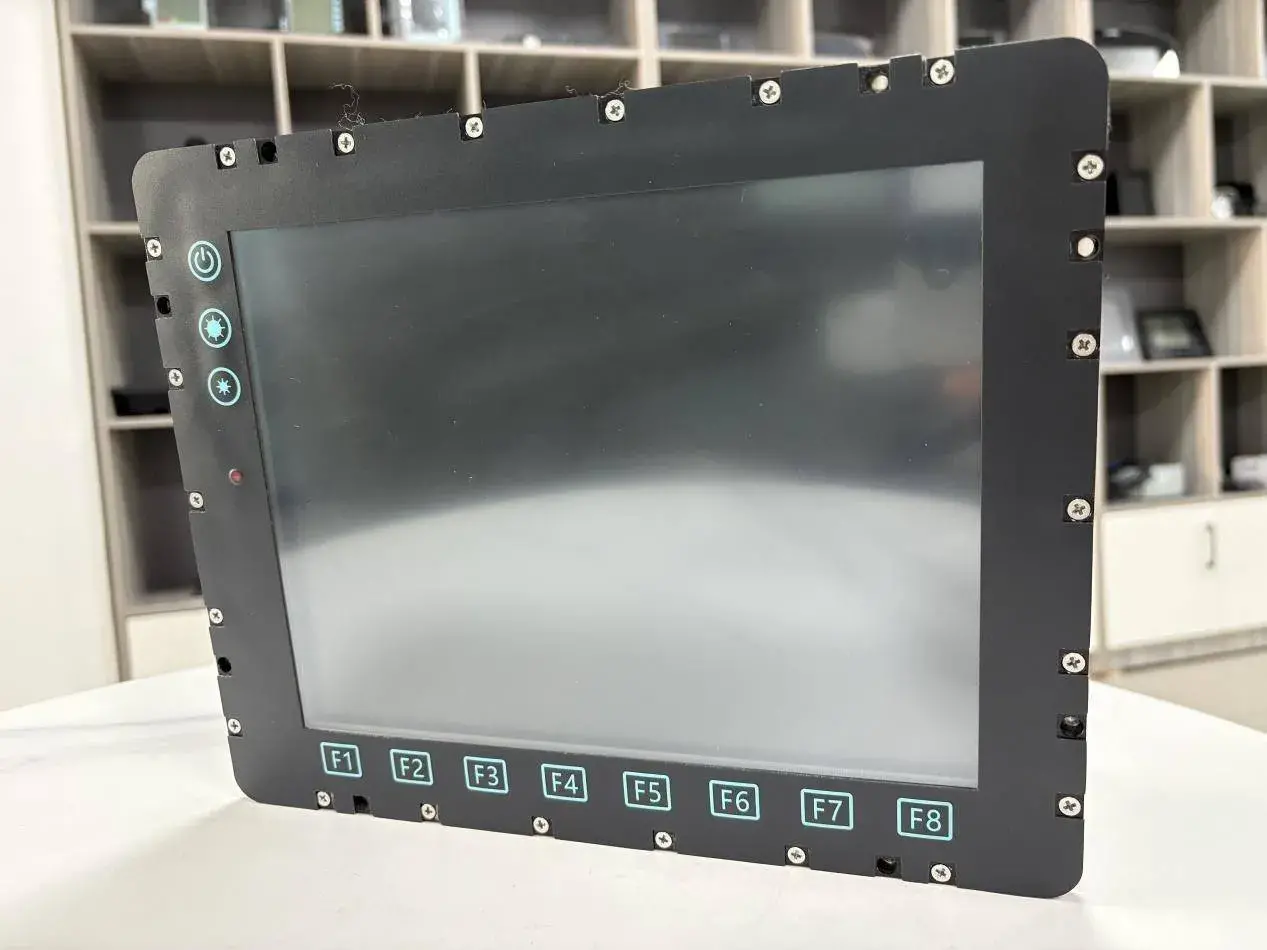

SANY Construction Machinery Industrial Monitor SR series
A highly reliable industrial display terminal designed exclusively for SANY heavy machinery such as rotary drilling rigs and truck cranes. It features wide temperature adaptation, vibration resistance, waterproof and dustproof performance, ensuring stable operation even in extreme working conditions.
Description
Tags
| Product Model | Compatible Equipment Type | Typical Applicable Models |
| SY-MON-121 | 12.1″ Rotary Drilling Rig Monitor | SANY SR220C, SR280R, SR360R |
| SY-MON-150 | 15″ Truck Crane Monitor | SANY STC800T6, STC1000C7 |
| SY-MON-170 | 17″ Excavator/Paver Universal Monitor | SANY SY485H, SAP90C-8 |
| Category | Detailed Specifications |
| Display | 12.1″ Industrial LCD / Resolution 1024×768 / Brightness 800cd/㎡ / Contrast Ratio 1000:1 / Viewing Angle 170°(H)/160°(V) |

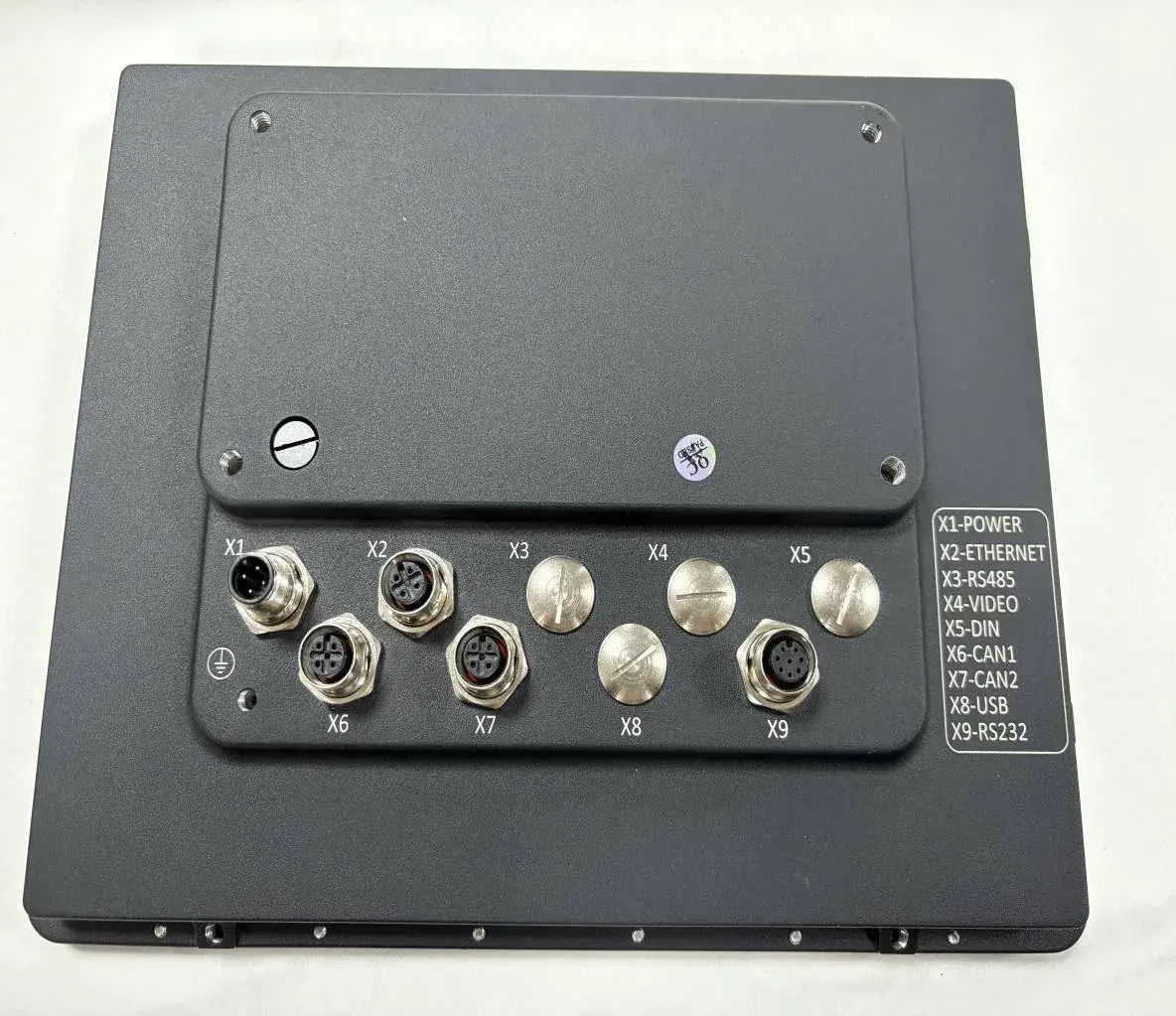

| I/O Interfaces | Dual CAN 2.0A/B Bus / 1×Ethernet Port / 1×RS485 / 1×Analog Video Input / 1×USB 2.0 / 12~36V DC Wide Voltage Input |
| Physical Features | Front Panel IP65 / Whole Unit IP54 / Installation: Flush Panel Mount / Material: Die-Cast Aluminum Bezel + Tempered Glass Front |
