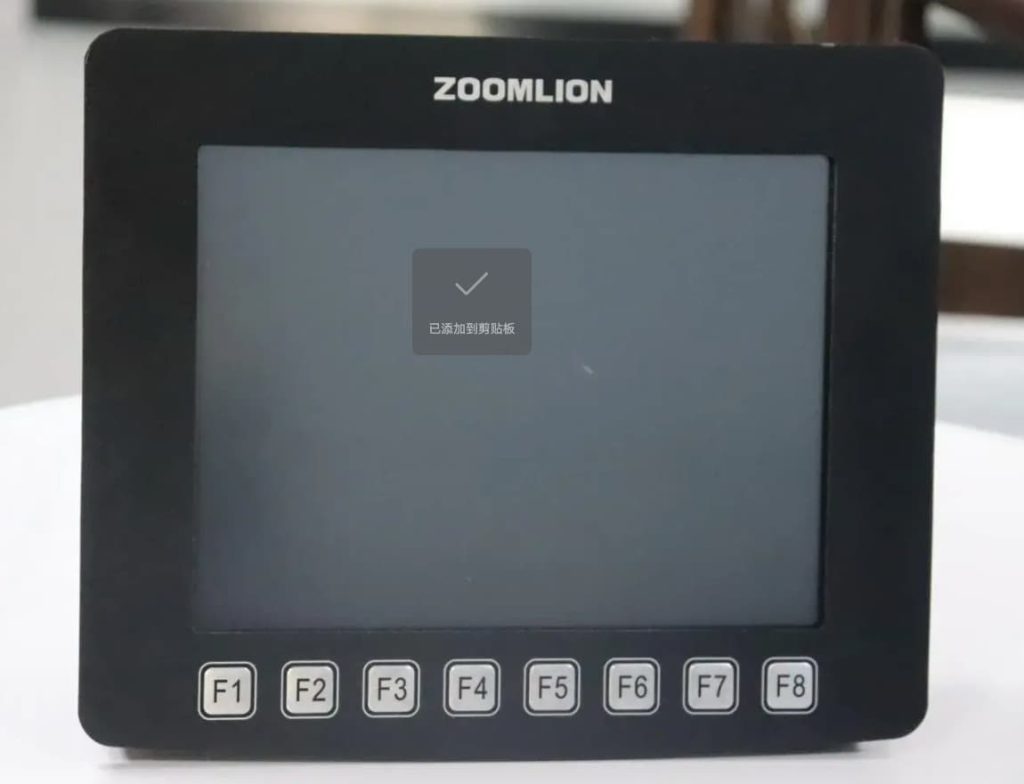

Reliable operator information is essential for construction equipment working in demanding jobsite conditions. The Zoomlion ZLDQ-8BA-6Q Construction Machinery LCD Display is designed as an industrial display terminal for equipment data visualization and monitoring applications. It combines an 8-inch TFT LCD screen, CAN bus communication capability, video input support, and a wide DC voltage range in one compact unit.

For buyers sourcing a replacement display or planning maintenance inventory, the most important step is confirming the exact part number, wiring configuration, connector layout, software compatibility, and equipment application before purchase.

Designed for Construction Machinery Monitoring

A construction machinery display is more than a screen. It is an important interface between the machine control system and the operator. Depending on the equipment configuration, the display may present operating information such as load-related data, boom status, warning messages, system conditions, or camera images.

The ZLDQ-8BA-6Q LCD display is suitable for applications where equipment information must remain visible in outdoor working environments. Its high-brightness display design helps operators read key information in changing light conditions, including bright daylight.

Key Features of the ZLDQ-8BA-6Q LCD Display

8-Inch TFT LCD Screen

The unit uses an 8-inch TFT LCD display with an 800 × 600 resolution. This format provides a practical balance between screen readability and installation space for construction machinery control panels.

Adjustable Brightness for Better Visibility

The display supports an adjustable brightness range of 300 to 1000 cd/m². Appropriate brightness adjustment can help improve readability in different operating environments, including outdoor worksites with variable daylight.

Wide Voltage Input

With a DC 9–36V input range, the ZLDQ-8BA-6Q Construction Machinery LCD Display is designed for equipment electrical systems that require wide-voltage compatibility. Voltage requirements must still be confirmed against the machine’s actual electrical system before installation.

CAN Bus Communication

The unit supports two CAN bus interfaces. CAN communication is widely used in construction machinery because it allows control modules and display terminals to exchange operational data efficiently. Before replacement, purchasers should verify the communication protocol, pin definition, wiring harness, and software version to ensure proper integration.

Video Input Capability

Two AV video inputs support monitoring functions such as reverse-camera viewing or equipment video feeds. This can help operators access relevant visual information through the same display terminal, depending on the machine’s installed system configuration.

Industrial Protection Design

The display is specified with IP65 protection at the front and IP54 protection at the rear. This design helps address typical jobsite challenges such as dust exposure and incidental water contact. Protection performance depends on correct installation, sealing condition, cable routing, and enclosure integrity.

Technical Specifications

Why Correct Display Matching Matters

Replacing a Construction Machinery LCD Display should never be based on appearance alone. A display with a similar screen size may still have different power, data, software, connector, mounting, or function-key requirements.

Before ordering, buyers should confirm:

• Exact part number: ZLDQ-8BA-6Q
• Equipment model and serial number
• Display label and connector photos
• Input voltage and wiring configuration
• CAN bus communication requirements
• Mounting dimensions and panel cutout
• Required video-input function
• Existing display software and control-system compatibility

This verification process helps reduce installation delays, incorrect orders, and unnecessary equipment downtime.

Suitable Applications

The ZLDQ-8BA-6Q display may be used in compatible Zoomlion construction machinery applications, including equipment where an LCD terminal is required for machine data visualization, safety-related operating information, or camera monitoring. Actual fitment must be confirmed for each machine before supply or installation.

For maintenance teams, rental fleets, parts distributors, and equipment repair companies, keeping accurate display information on file can speed up troubleshooting and replacement sourcing when an original unit is damaged, unreadable, or no longer functioning correctly.

Maintenance and Replacement Advice

To help protect the service life of an LCD display terminal, operators and maintenance personnel should keep the front panel clean, inspect connectors during scheduled servicing, avoid using aggressive cleaning chemicals, and investigate abnormal warning messages promptly.

If a display fails to power on, shows an unclear image, loses communication, or has damaged buttons or a cracked screen, technicians should first inspect the power supply, wiring harness, connectors, fuse condition, communication lines, and related control modules. Installation or programming work should be completed by qualified personnel familiar with the relevant equipment system.

Frequently Asked Questions

What is the Zoomlion ZLDQ-8BA-6Q Construction Machinery LCD Display?

It is an industrial LCD display terminal designed for compatible construction-machinery monitoring and control-system applications. It supports an 8-inch TFT screen, CAN bus communication, AV video input, and programmable function keys.

Can this display be installed on any Zoomlion machine?

No. Compatibility must be checked using the exact part number, machine model, electrical connections, communication protocol, mounting dimensions, and software requirements.

Does the display support camera input?

Yes. The ZLDQ-8BA-6Q has two AV video inputs. The actual camera function depends on the equipment’s wiring and system configuration.

Why should I verify the CAN bus before ordering?

CAN bus wiring, protocols, and software configurations can vary. Confirming these details helps ensure the replacement display can communicate correctly with the machine system.

Conclusion

The Zoomlion ZLDQ-8BA-6Q Construction Machinery LCD Display is a practical display solution for compatible equipment requiring clear visual information, CAN bus communication, video input capability, and industrial-grade panel protection. For the best replacement result, confirm the original part number and machine-specific configuration before ordering.

For part matching, availability, or a quotation, please contact our team.
