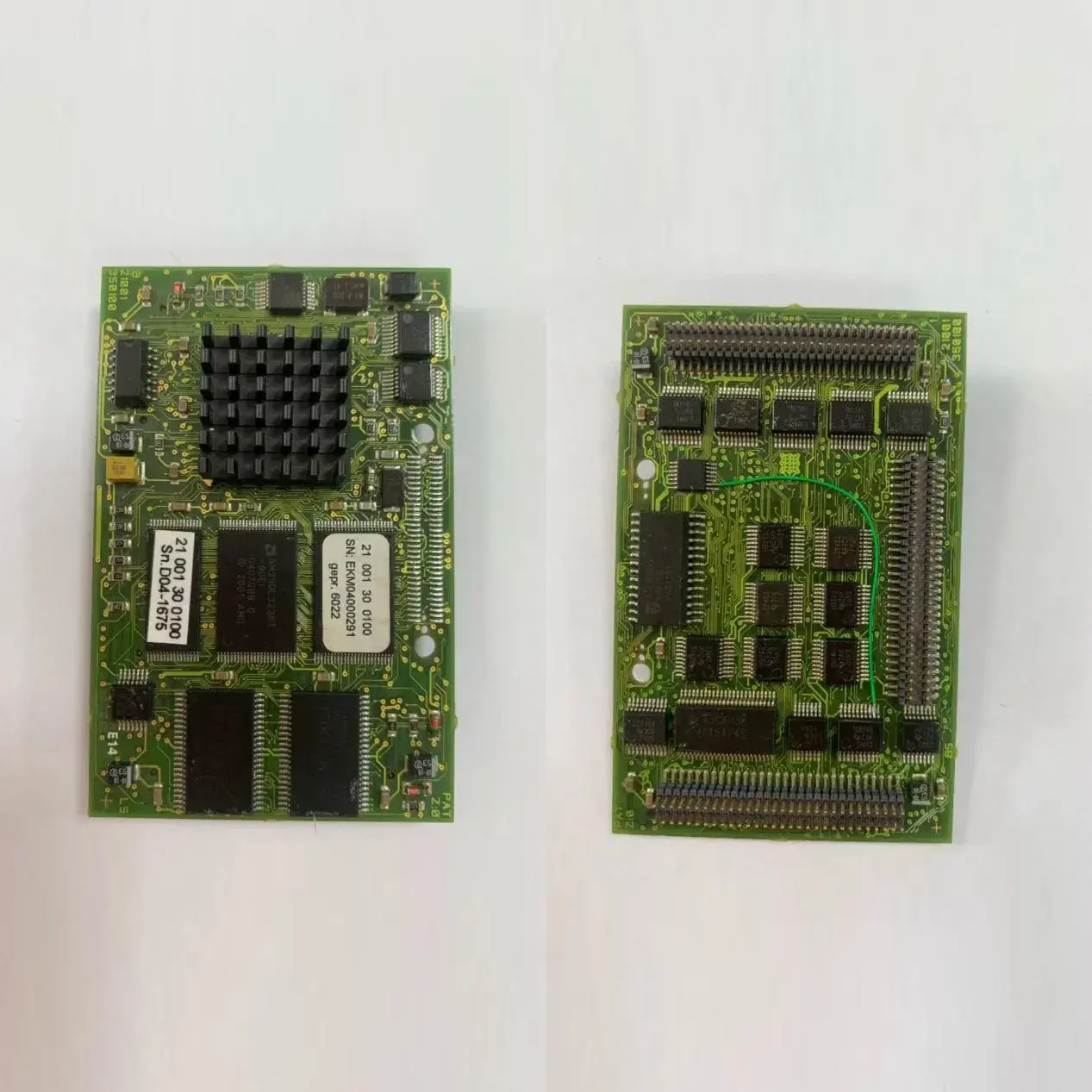

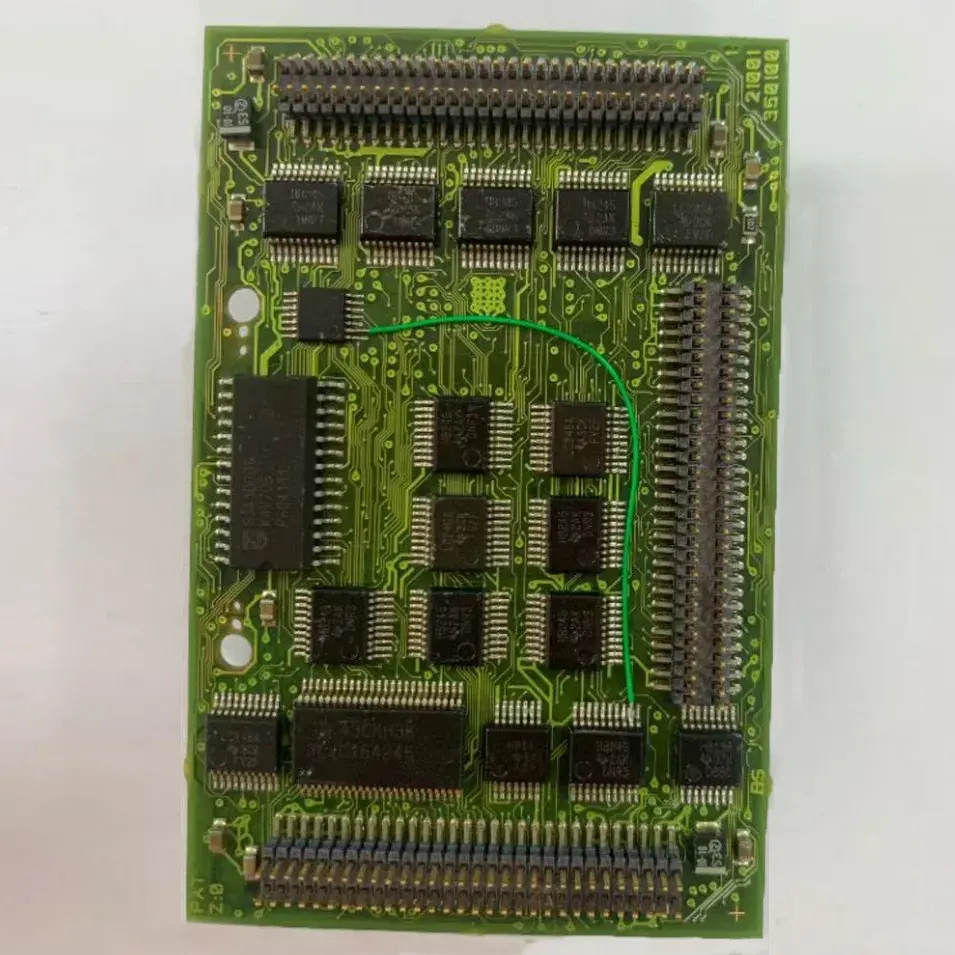

The IFEX5T series motherboard is the core computing and control unit of crane safety monitoring systems. It integrates high-precision data acquisition, multi-condition safety logic calculation, and real-time fault diagnosis.
Product Overview
The IFEX5T series motherboard is the core computing and control unit of crane safety monitoring systems. It integrates high-precision data acquisition, multi-condition safety logic calculation, and real-time fault diagnosis.
Technical Specifications
| Category | Details |
| Core Performance | Main Processor: 32-bit Industrial ARM Cortex-M4; Operating Frequency: 80MHz; Program Storage: 512KB FLASH |
| I/O Configuration | Analog Input: 8 channels (0-10V/4-20mA); Digital Input: 16 channels; Relay Output: 8 channels (2A/24VDC) |
| Electrical Specs | Operating Voltage: DC 24V±10%; Power Consumption: ≤15W; Isolation: 2.5kVAC between I/O circuits |
| Environmental Resistance | Operating Temperature: -40℃~+70℃; Storage Temperature: -55℃~+85℃; Protection Class: IP20 (board level) |
| Mechanical Specs | Dimensions: 185mm×135mm; Mounting: DIN rail / bolt-on; Weight: ~450g |
| Safety Certifications | EN 13849-1 PLd; CE Certified; Complies with GB/T 28264-2012 Crane Safety Monitoring Standard |
