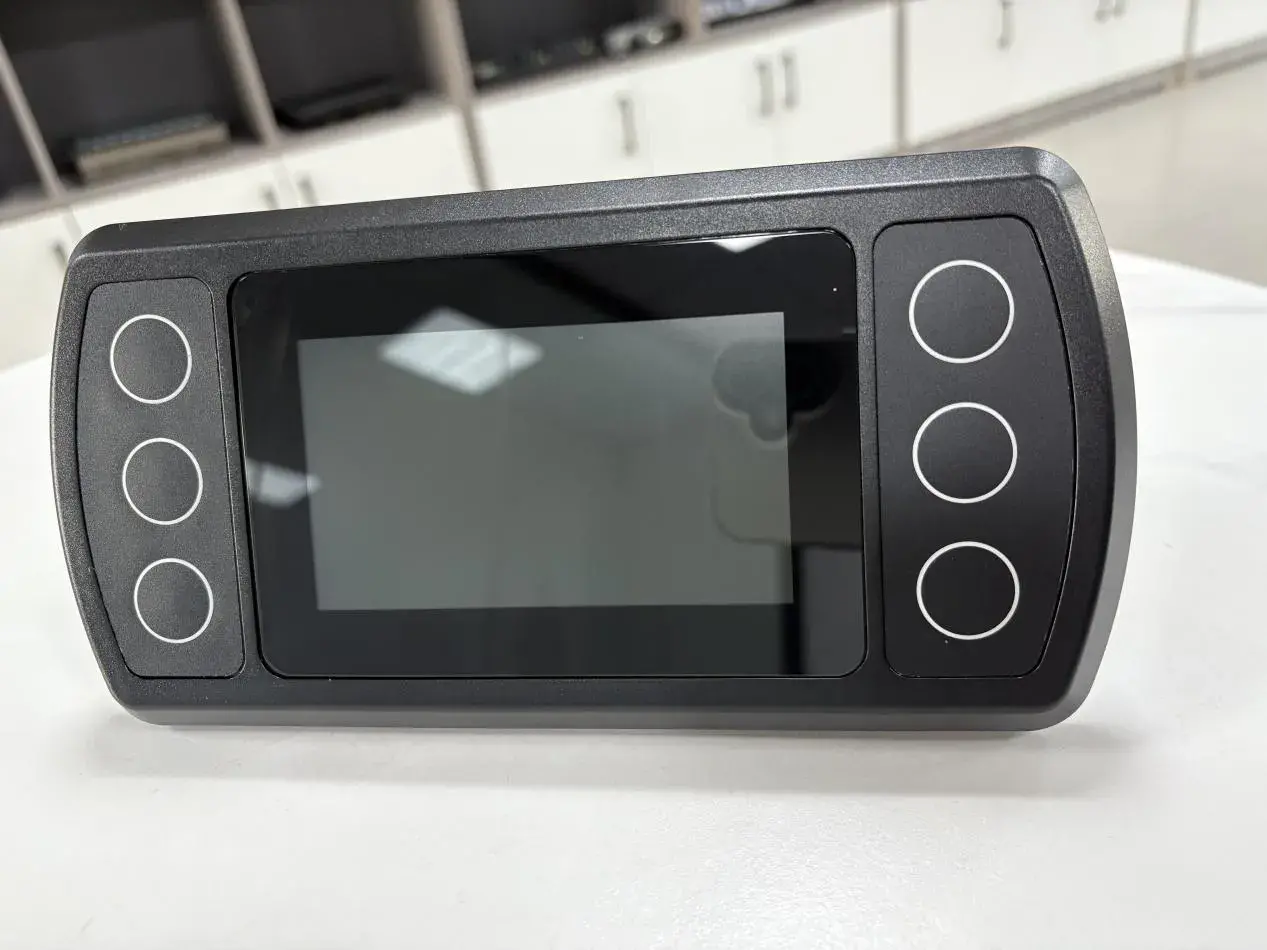

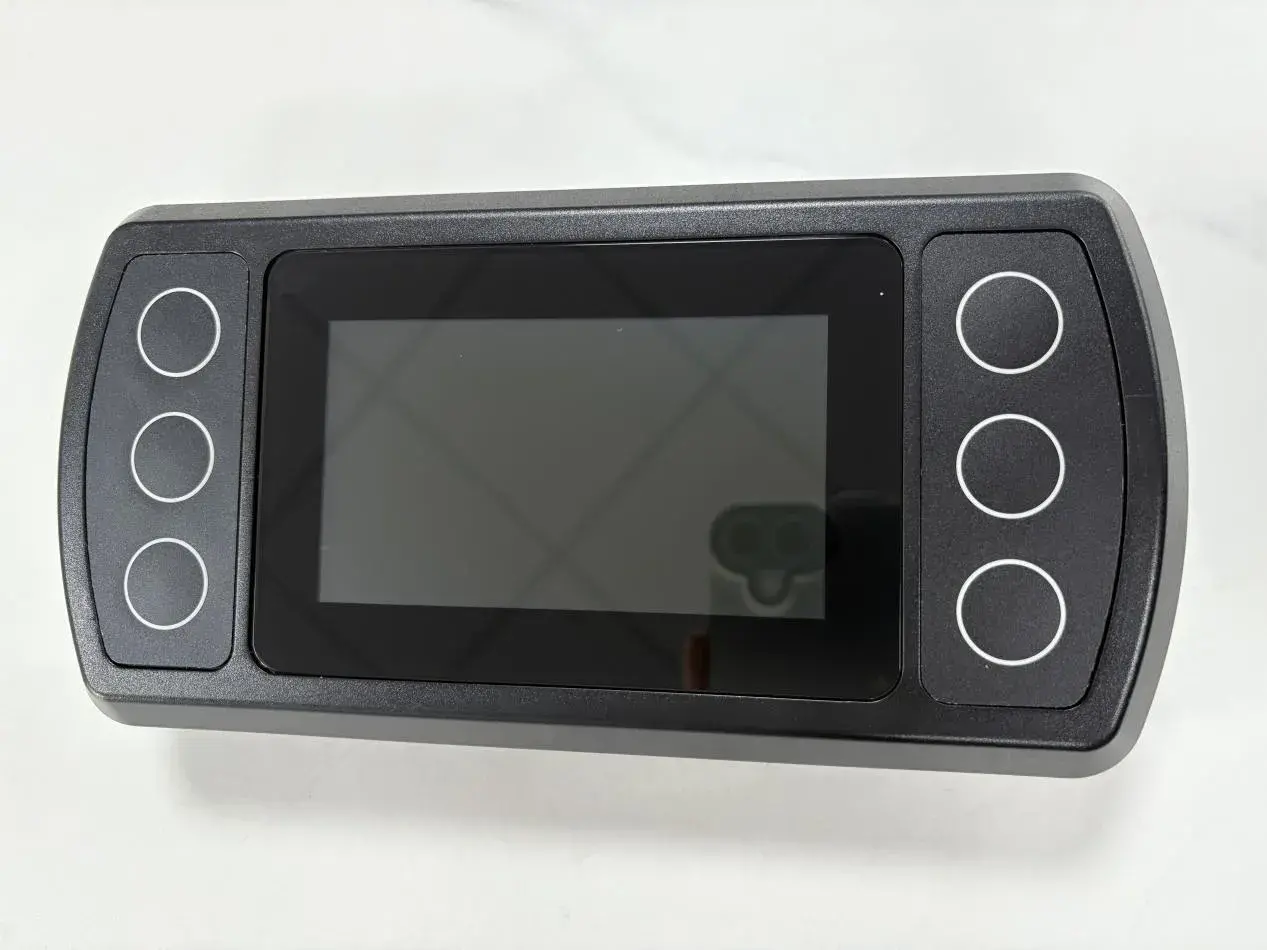

The ICA3601-043H is an industrial-grade intelligent display engineered for construction machinery and mobile equipment. Featuring a 4.3-inch high-brightness color LCD screen housed in a rugged die-cast aluminum enclosure, it delivers reliable performance in harsh operating conditions including vibration, extreme temperatures, and high humidity. It provides real-time status monitoring, fault diagnostics, and human-machine interaction for aerial work platforms, forklifts, sanitation vehicles, excavators, and more.
Overview
Model & Specifications Table
| Category | Details |
| Model | ICA3601-043H |
| Display | 4.3-inch TFT LCD, 480×272 resolution, 500 cd/m² brightness |
| Input Voltage | DC 8~36V (reverse polarity protected) |
| Operating Temp | -40°C ~ +85°C |
| Protection Rating | Front IP65, Rear IP54 |
| Communication | 1×CAN Bus (SAE J1939), 1×USB port |
| I/O | 6 physical button inputs, expandable relay outputs |
| Housing Material | Die-cast aluminum + ABS engineering plastic |
| Mounting Type | Panel embedded / bracket mounted |
| Dimensions | 242mm × 102mm × 55mm (L×W×H) |
