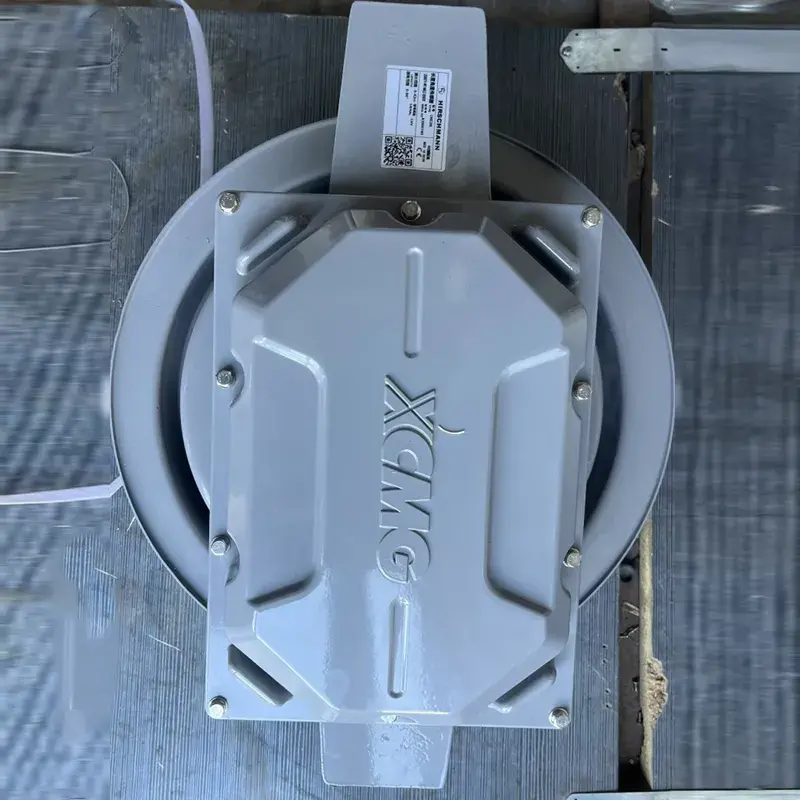

Hirschmann PAT Series LWG208 Crane Cable Reel Sensor
This cable reel sensor is a core safety component in construction machinery, designed specifically for mobile cranes and all-terrain cranes. It integrates high-precision sensors and an automatic cable retraction mechanism to simultaneously detect boom extension length and elevation angle, transmitting real-time data to the Load Moment Indicator (LMI). This eliminates overload risks at the source, making it a critical device for ensuring lifting safety.
Description
Tags
Product Overview
This cable reel sensor is a core safety component in construction machinery, designed specifically for mobile cranes and all-terrain cranes. It integrates high-precision sensors and an automatic cable retraction mechanism to simultaneously detect boom extension length and elevation angle, transmitting real-time data to the Load Moment Indicator (LMI). This eliminates overload risks at the source, making it a critical device for ensuring lifting safety.
Our products are fully compatible with the original mounting dimensions and signal protocols of major brands like XCMG, Grove, and Liebherr, allowing direct replacement without additional modifications.
Core Models & Technical Specifications
| Model | Length Measurement Range | Angle Measurement Range | Measurement Accuracy | Supply Voltage | Output Signal | Protection Class | Application Scenario |
| LWG208-20 | 0~20m | 0~180° | Length: ±0.1%FS<br>Angle: ±0.1° | 10~30V DC | 4~20mA / CANbus | IP67 | 12~25 ton mobile cranes |
| LWG208-30 | 0~30m | 0~180° | Length: ±0.1%FS<br>Angle: ±0.1° | 10~30V DC | 4~20mA / CANbus | IP67 | 25~50 ton mobile cranes |
| LWG208-40 | 0~40m | 0~180° | Length: ±0.1%FS<br>Angle: ±0.1° | 10~30V DC | 4~20mA / CANbus | IP67 | 50~100 ton all-terrain cranes |
| LWG208-50 (Custom) | 0~50m | 0~180° | Length: ±0.1%FS<br>Angle: ±0.1° | 10~30V DC | 4~20mA / CANbus | IP67 | Large crawler cranes over 100 tons |
