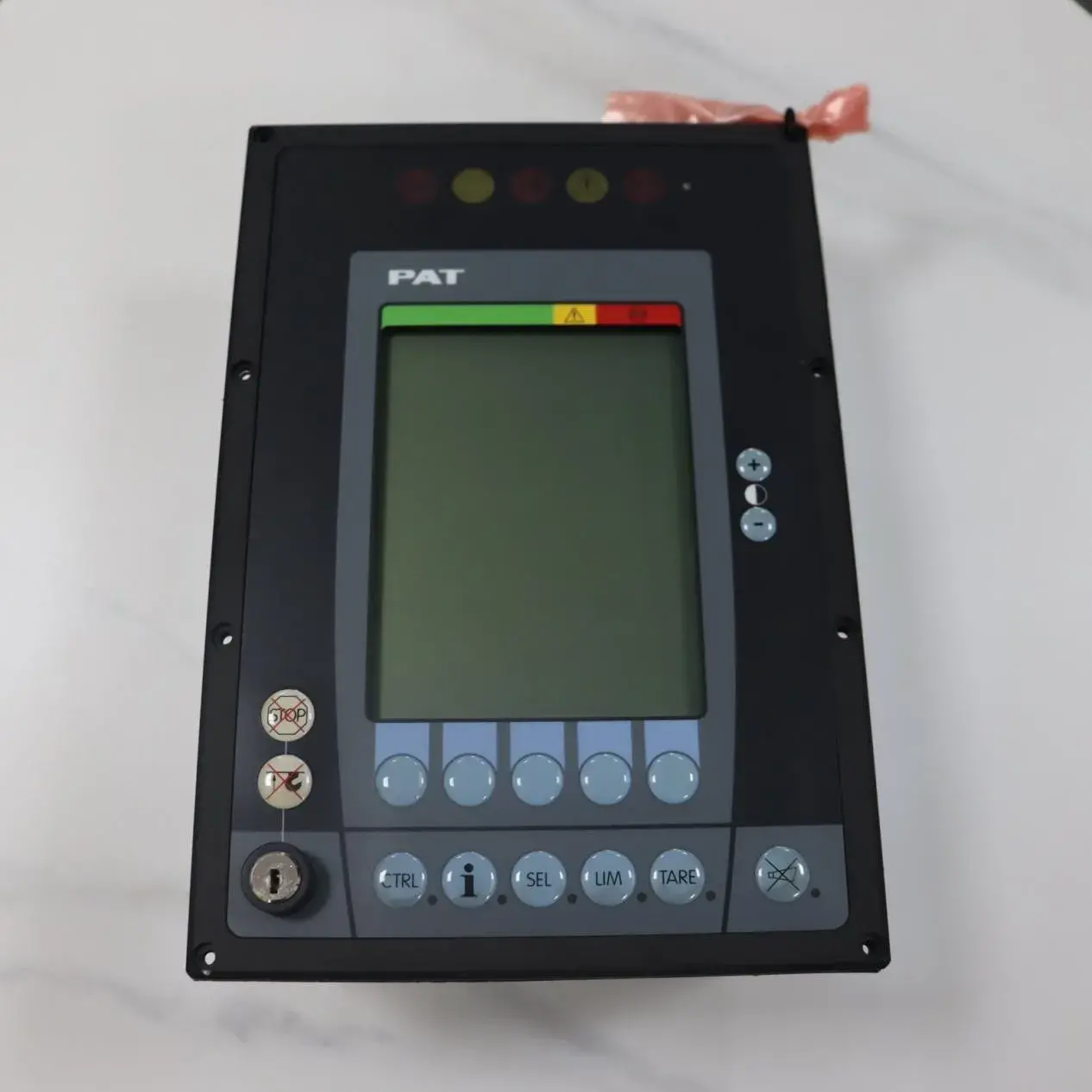

The Hirschmann PAT IK350/1358 is a professional safety monitoring device engineered for mobile and crawler cranes. It integrates real-time load moment calculation, parameter visualization, and multi-stage alarm systems. By continuously tracking critical lifting data such as load weight, boom length, and working radius, it provides operators with clear, actionable information and triggers visual/audio alerts when approaching safety limits. This unit is a core safety component that prevents overloading and ensures compliance with industry regulations.
| Parameter Category | Details |
| Model | IK 350/1358 |
| Brand | Hirschmann (Germany) |
| Display Type | Industrial LCD Screen |
| Input Voltage | 24V DC (Wide Range: 18V ~ 32V DC) |
| Operating Temperature | -20°C ~ +60°C |
| Protection Rating | IP65 (Front) / IP54 (Rear) |

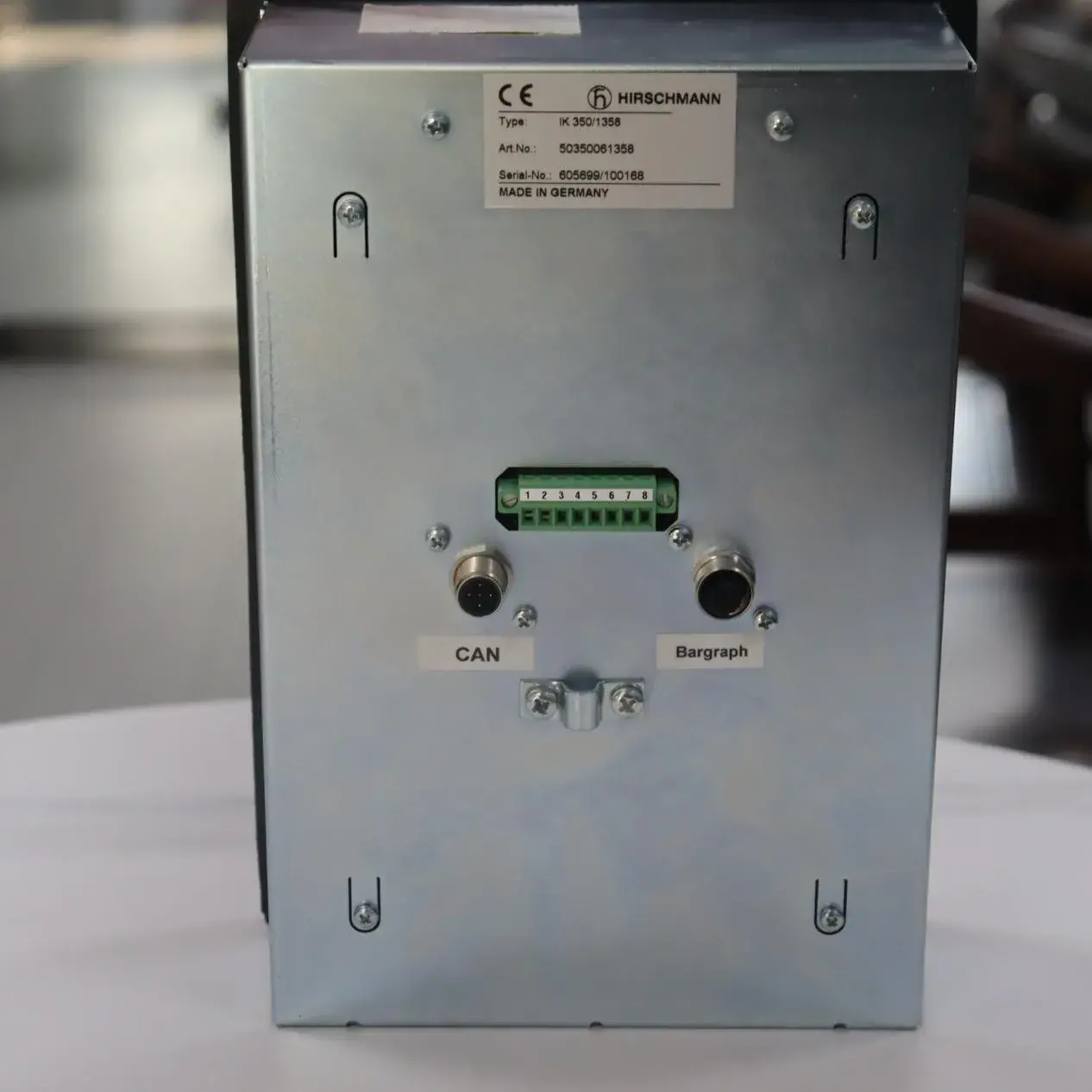

| Communication Interfaces | 1 × CAN Bus, 1 × Bargraph |
| Mounting Style | Flush Panel Mount |
| Housing Material | High-Strength Alloy Metal |
| Certifications | CE Certified, compliant with EU industrial safety standards |
