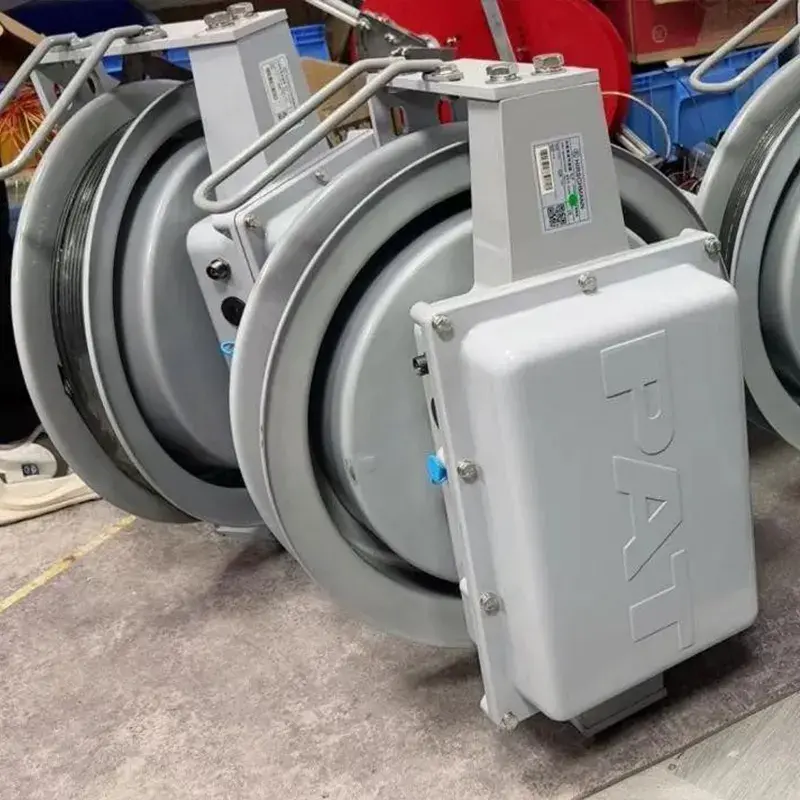

Hirschmann LWMG322 Length & Angle Sensor + Cable Reel Kit for Cranes
This sensor and cable reel kit is the core component of safety control systems for lifting machinery, designed specifically for mobile cranes, crawler cranes, and other engineering equipment. It provides real-time, precise detection of boom extension length and elevation angle, converting data into standard electrical signals for the load moment limiter (LML). This prevents overload, rollover, and other safety incidents at the source, making it an original equipment manufacturer (OEM) choice for leading crane brands worldwide.
Description
Tags
Product Overview
This sensor and cable reel kit is the core component of safety control systems for lifting machinery, designed specifically for mobile cranes, crawler cranes, and other engineering equipment. It provides real-time, precise detection of boom extension length and elevation angle, converting data into standard electrical signals for the load moment limiter (LML). This prevents overload, rollover, and other safety incidents at the source, making it an original equipment manufacturer (OEM) choice for leading crane brands worldwide.
Technical Specifications
| Category | Parameter | Specification |

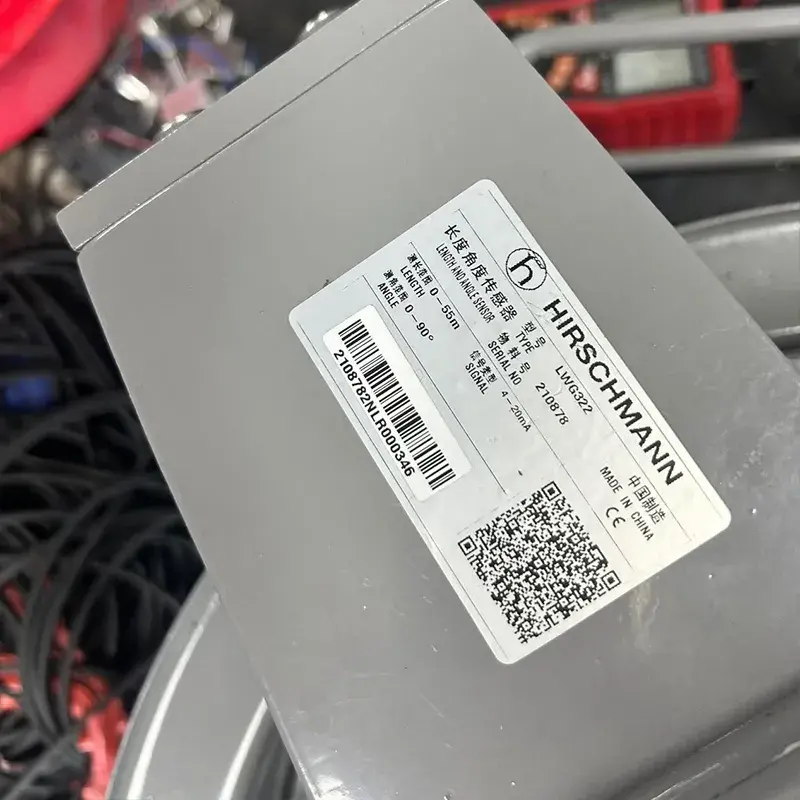

| Length & Angle Sensor | Model | LWMG322 |
| Length Range | 0~55m (100m range available on request) | |
| Angle Range | 0~90° | |
| Output Signal | 4~20mA (dual independent outputs) | |
| Supply Voltage | 10~30VDC (wide voltage compatibility) | |
| Mounting Method | Articulated mounting on boom head | |
| Cable Reel Unit | Reel Stroke | 0~55m (synchronized with sensor range) |
| Cable Specification | 4-core × 1.0mm² oil-resistant PU cable |
