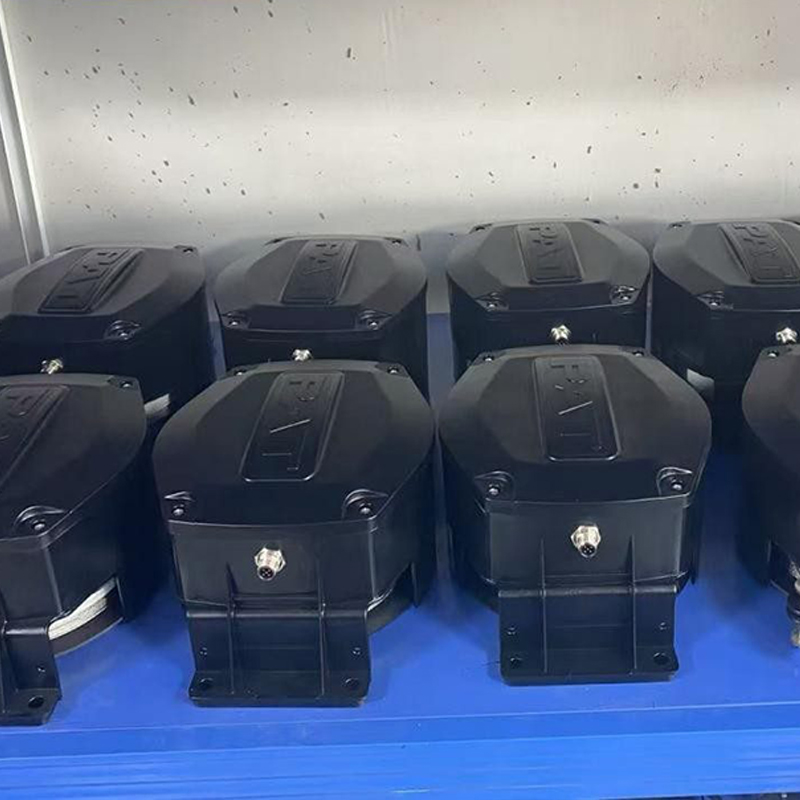

Hirschmann LWG610 Length & Angle Sensor Reel Box
This reel box is a core component of construction machinery safety systems, integrating high-precision dual measurement of length and angle. It is specifically designed for load moment limiters (LML) of mobile cranes, aerial work platforms, and other equipment. By real-time collecting data on boom extension length and luffing angle, it works with the main controller to monitor safe load capacity, fundamentally preventing dangerous conditions such as overloading and overreaching.
Description
Tags
Product Overview
This reel box is a core component of construction machinery safety systems, integrating high-precision dual measurement of length and angle. It is specifically designed for load moment limiters (LML) of mobile cranes, aerial work platforms, and other equipment. By real-time collecting data on boom extension length and luffing angle, it works with the main controller to monitor safe load capacity, fundamentally preventing dangerous conditions such as overloading and overreaching.
Technical Specifications
| Item | Specification |
| Model | LWG610 |
| Part Number | 211040 |
| Length Measurement Range | 0-10m (15m/20m ranges available on request) |
| Angle Measurement Range | 0-360° (continuous non-dead-angle measurement) |
| Signal Type | CAN Bus (CANopen Protocol) |
| Supply Voltage | DC 12-24V (wide voltage adaptation) |
| Cable Material | Polyurethane oil-resistant and wear-resistant cable |
| Reel Box Outer Diameter | φ280mm |
| Total Weight | 3.2kg |
