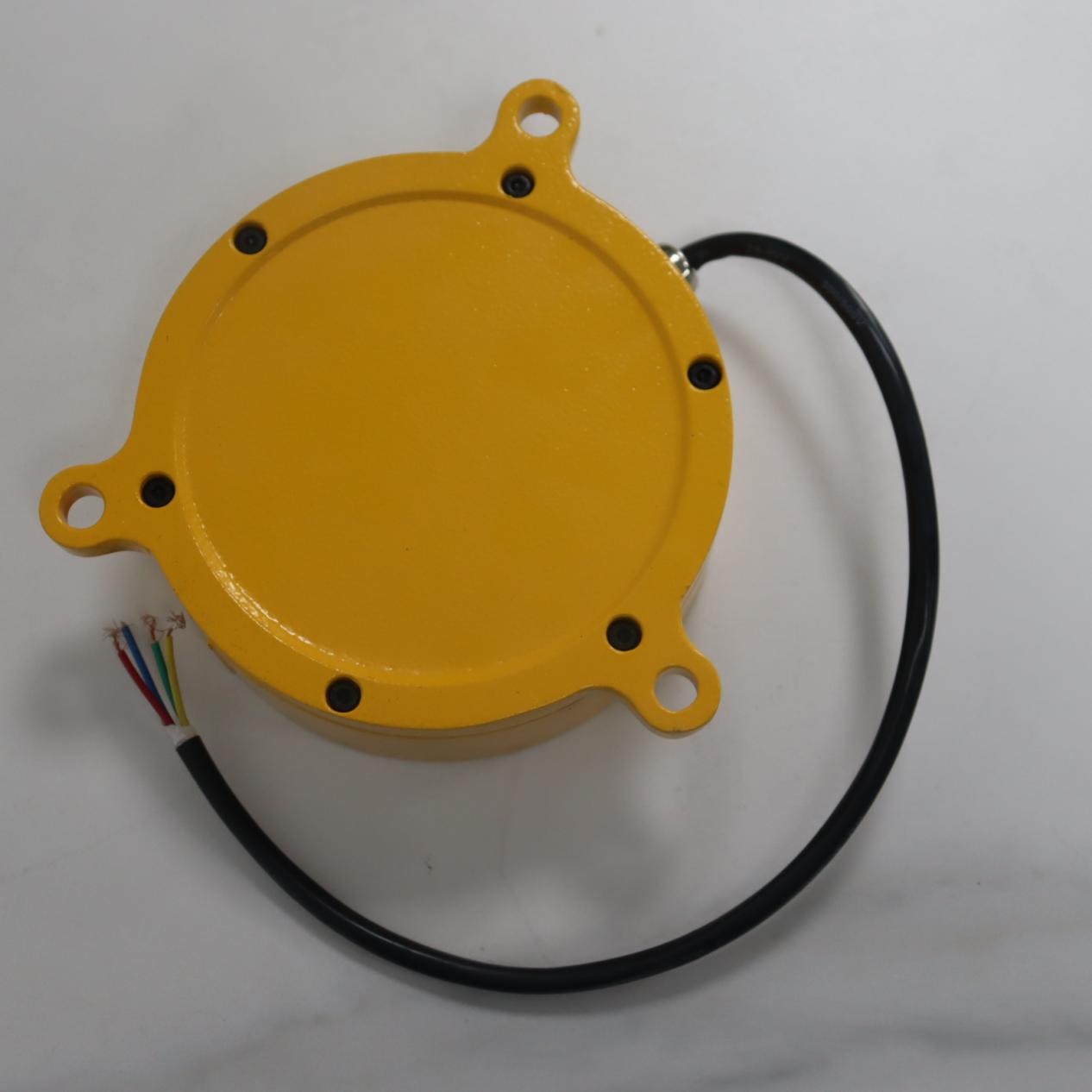

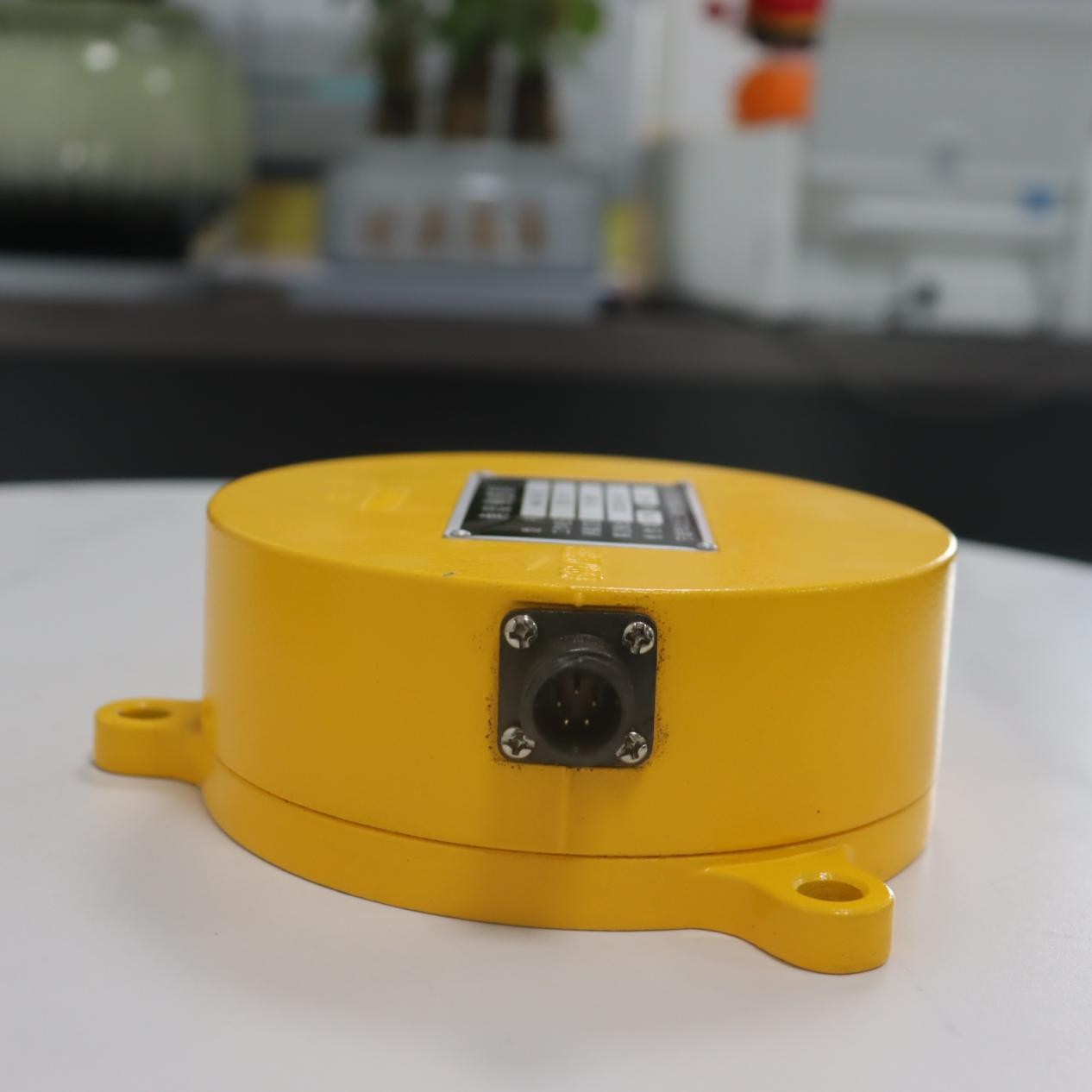

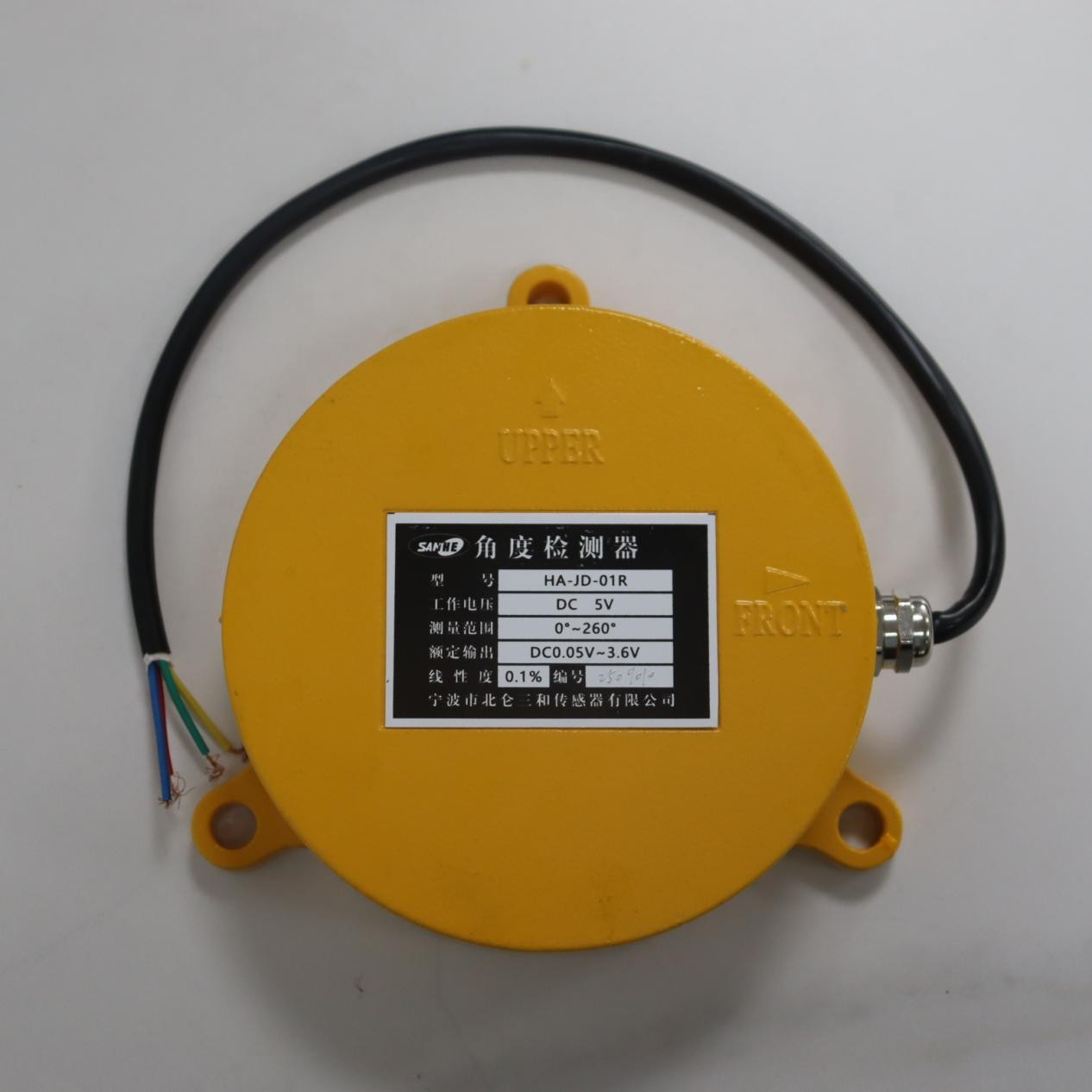

HA-JD-01R Angle Detector
The HA-JD-01R Angle Detector is an industrial-grade inclination sensor engineered for heavy machinery, lifting equipment, and automated production lines. It features high-stability sensing components that accurately detect angular changes over a wide range of 0°~260°, and outputs a linear analog voltage signal for seamless integration with industrial control systems. Its all-metal housing provides exceptional resistance to shock and electromagnetic interference, ensuring reliable performance even in harsh operating environments.
Description
Tags
Product Overview
The HA-JD-01R Angle Detector is an industrial-grade inclination sensor engineered for heavy machinery, lifting equipment, and automated production lines. It features high-stability sensing components that accurately detect angular changes over a wide range of 0°~260°, and outputs a linear analog voltage signal for seamless integration with industrial control systems. Its all-metal housing provides exceptional resistance to shock and electromagnetic interference, ensuring reliable performance even in harsh operating environments.
Core Specifications
| Item | Specification |
| Model | HA-JD-01R |
| Measurement Range | 0° ~ 260° |
| Rated Output | DC 0.05V ~ 3.6V |
| Housing Material | Cast Aluminum |
| Protection Rating | IP65 (Water & Dust Resistant) |
| Cable Connection | Cable with Metal Waterproof Gland |
| Mounting Method | Flange Hole Fixation |
| Manufacturer | Ningbo Beilun Sanhe Sensor Co., Ltd. |
Typical Applications
Construction Machinery: Angle detection for excavator and crane booms to prevent over-limit operation.
Port Equipment: Real-time monitoring of spreader level on shore bridges and portal cranes.
Aerial Work Platforms: Inclination safety warning for lift trucks and aerial work platforms.
Automated Production Lines: Closed-loop angle control for flipping mechanisms and positioning fixtures.
Key Advantages
Wide Range Coverage: 0°~260° detection range meets the needs of most industrial scenarios.
High-Precision Output: 0.1% linearity ensures accurate and reliable angle data.
Industrial-Grade Protection: Fully enclosed metal housing offers strong resistance to vibration and electromagnetic interference.
