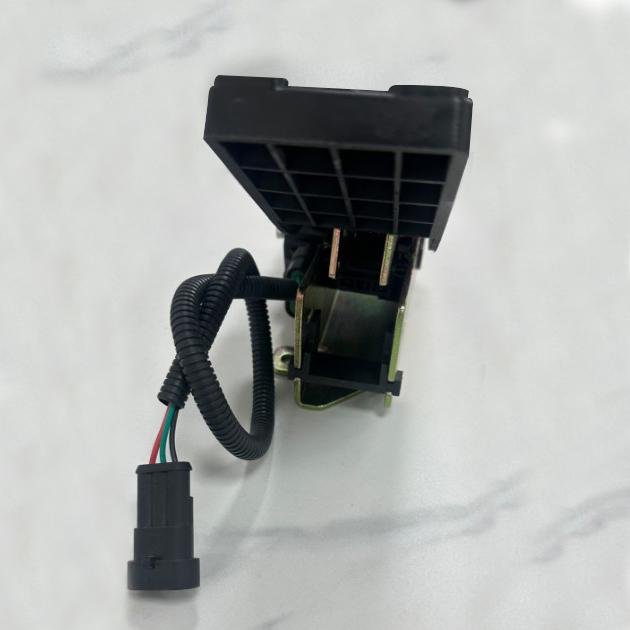

Electronic Accelerator Pedal for Construction Vehicles
This electronic accelerator pedal is specifically designed for construction vehicles, heavy-duty trucks, and off-road equipment. It utilizes non-contact Hall sensor technology to deliver precise dual-channel voltage signals, ensuring stable and reliable control of vehicle power output. The pedal surface features an anti-slip texture, paired with a high-strength metal mounting bracket, making it suitable for frequent use in complex working conditions.
Description
Tags
Product Introduction
This electronic accelerator pedal is specifically designed for construction vehicles, heavy-duty trucks, and off-road equipment. It utilizes non-contact Hall sensor technology to deliver precise dual-channel voltage signals, ensuring stable and reliable control of vehicle power output. The pedal surface features an anti-slip texture, paired with a high-strength metal mounting bracket, making it suitable for frequent use in complex working conditions.
Core Models & Specifications
| Item | Details |
| Product Model | D100X-007-801B-A / P8122-ANS-010-23190 |
| Supply Voltage | DC 9V ~ 36V |
| Output Signal Type | Analog Voltage (Dual Redundant Output) |
| Output Voltage Range | Signal 1: 0.5V (Idle) ~ 4.5V (Full Stroke); Signal 2: 1.0V (Idle) ~ 4.8V (Full Stroke) |
| Operating Temperature Range | -40℃ ~ +85℃ |
| Protection Rating | IP67 (Dust & Water Resistant, suitable for harsh outdoor environments) |
| Mechanical Life | ≥ 5,000,000 cycles |
| Mounting Method | Fixed via bottom metal bracket, fits standard construction vehicle mounting holes |
| Harness Specification | 3-wire (Power, Signal 1, Signal 2) with corrugated tube protection |
| Compatible Vehicles | Sany Heavy Industry cranes/mixers, MAZ heavy trucks, electric forklifts, loaders, etc. |
Product Features
Non-Contact Design：No mechanical wear, ensuring stable signal output and eliminating the risk of failure associated with traditional potentiometer-based pedals.
Dual Redundant Signals：Two independent output signals allow real-time system verification, enhancing vehicle safety.
High-Strength Construction：Anti-slip rubber pedal surface + galvanized metal bracket for impact and corrosion resistance, ideal for frequent use in construction scenarios.
Wide Voltage Compatibility：Supports 9V-36V input, compatible with both diesel and electric vehicle electrical systems.
Installation Tips
Before installation, confirm that the vehicle's supply voltage matches the pedal's rated voltage.
Ensure the mounting bracket is securely fixed to avoid signal deviation caused by vibration.
Protect the wiring harness with the provided corrugated tube to prevent abrasion from sharp components.
After installation, perform a no-load test to verify that pedal stroke and output voltage are linearly correlated.
