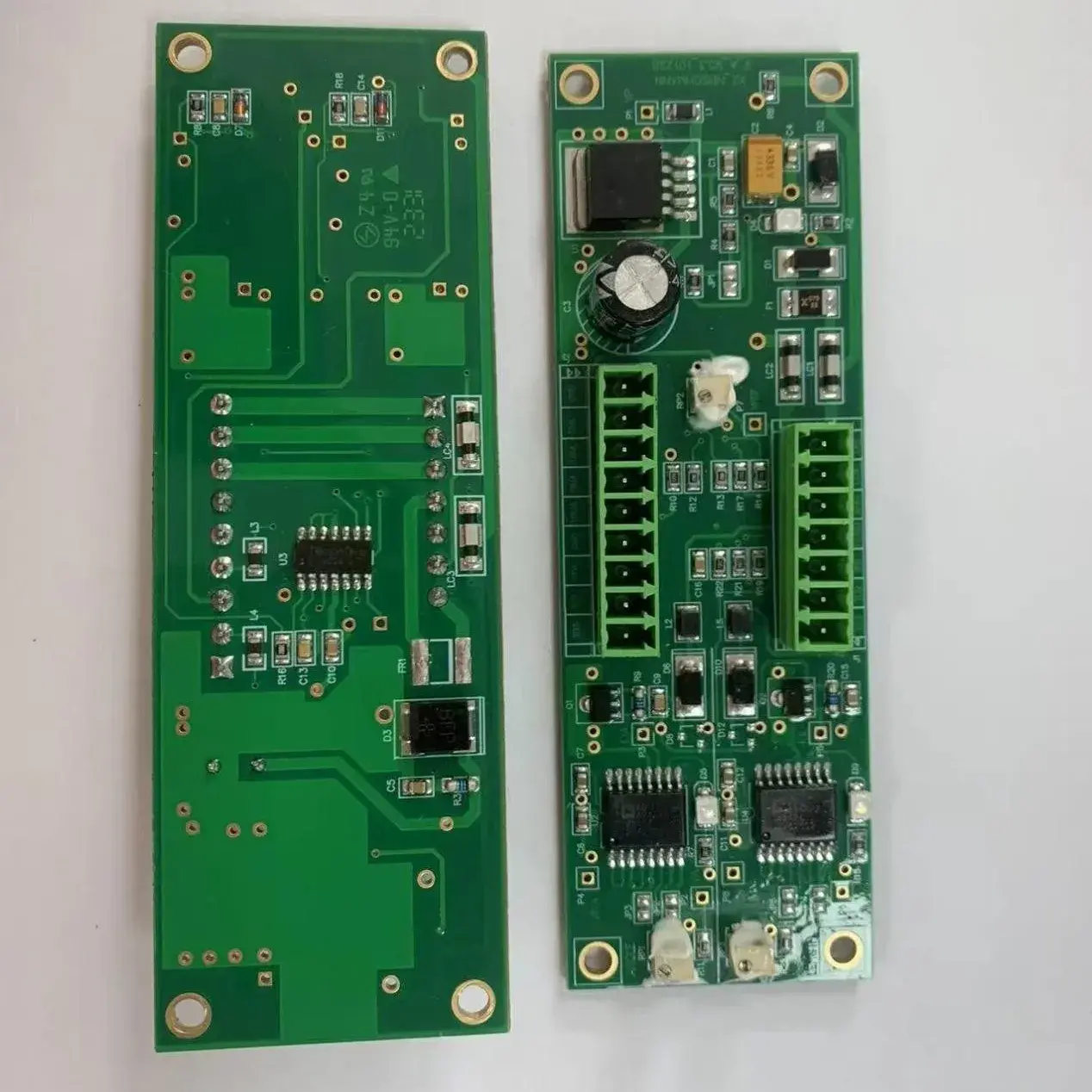

Current Monitoring and Protection Board for Crane Model 208 Cable Reel Box
Product Overview This product is a dedicated core safety monitoring component custom-developed for Crane Model 208 Cable Reel Box, integrating current sampling, signal analysis and safety protection functions. During equipment operation, it can real-time monitor the working current of the driv...
Description
Tags
Product Overview
This product is a dedicated core safety monitoring component custom-developed for Crane Model 208 Cable Reel Box, integrating current sampling, signal analysis and safety protection functions. During equipment operation, it can real-time monitor the working current of the drive motor and cable circuit inside the Model 208 Cable Reel Box, and accurately judge the synchronization between cable retraction and crane trolley travel. When faults such as cable jamming, abnormal tension or motor overload occur, it can quickly trigger an alarm signal or actively cut off the output circuit, fundamentally avoiding safety accidents such as cable breakage and motor burnout. It is suitable for supporting the Model 208 Cable Reel Box systems of various overhead and gantry cranes.
voltage fluctuations of cranes, and operate stably in a wide temperature range of -20℃~+60℃.
Debug-free Quick Commissioning
The adaptation and calibration with the Model 208 Cable Reel Box are completed before leaving the factory. It can be put into use immediately after on-site installation and wiring without debugging by professional technicians.
Model & Technical Parameter Table
| Model | Application Scenario | Rated Power Input | Current Detection Range | Response Time | Output Interface Type | Mounting Hole Spacing | Protection Grade | Operating Temperature Range |
| XZ-HPSCHIANNI V6.3 | Model 208 Cable Reel Box of Overhead/Gantry Cranes | DC24V/AC220V | 0~50A | ＜100ms | Dry Contact + RS485 Communication | 65mm×40mm | IP20 | -20℃~+60℃ |
| XZ-HPSCHIANNI V6.2 | Model 208 Cable Reel Box of Small Gantry Cranes | DC24V | 0~30A | ＜150ms | Dry Contact Output | 65mm×40mm | IP20 | -10℃~+55℃ |
| XZ-HPSCHIANNI V6.4 | Model 208 Cable Reel Box of Port Heavy-duty Cranes | AC220V | 0~100A | ＜80ms | RS485 Communication + Relay Output | 65mm×40mm | IP20 | -25℃~+70℃ |
After-sales Guarantee
For the special adaptation needs of the Model 208 Cable Reel Box, we can provide customized technical support such as current threshold calibration and communication protocol matching. Please feel free to contact our customer service team at any time.
