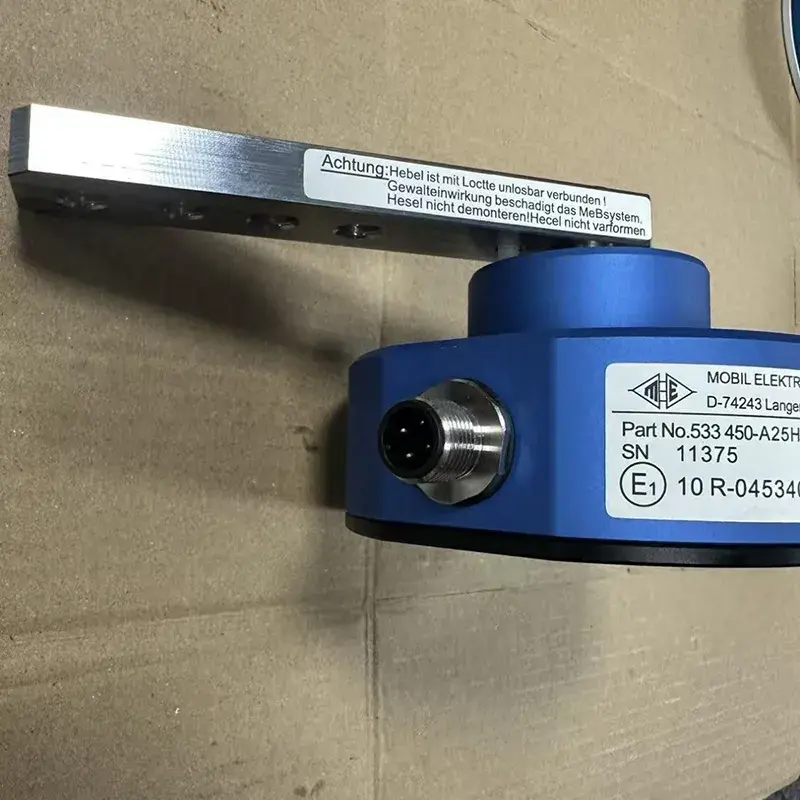

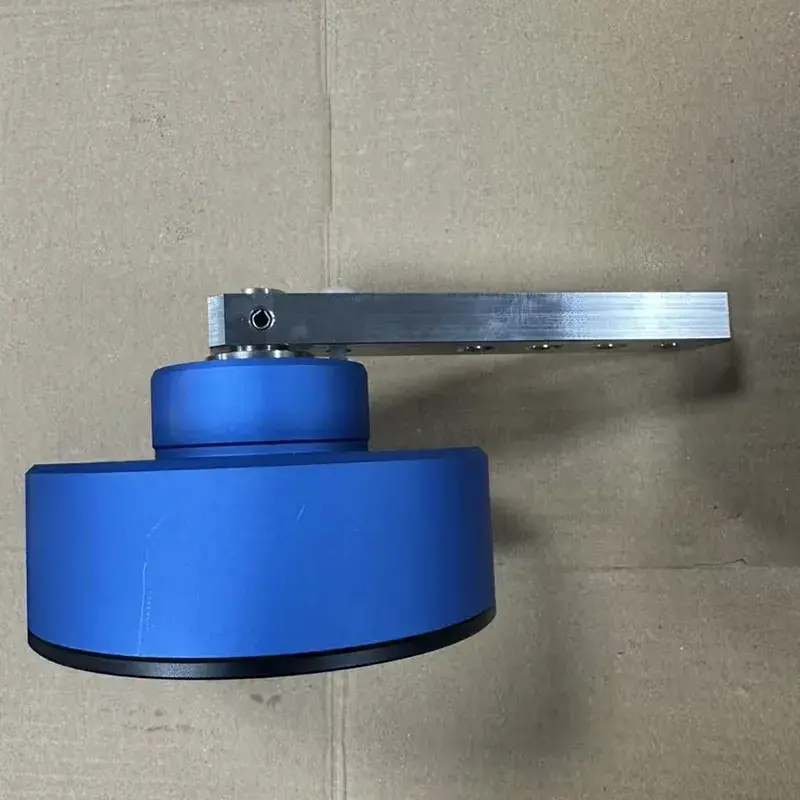

533450-A25H3X0-3 Angle sensor
The 533450-A25H3X0-3 angle sensor is a safety-grade non-contact sensing device belonging to the 533 series. Leveraging high-precision magnetic sensing technology, it accurately captures rotational angle changes and converts them into stable electrical signal outputs. Its non-mechanical contact structural design fundamentally reduces component wear and clogging issues. Combined with a high protection level and wide temperature adaptability, it can work continuously and stably in various harsh industrial and automotive environments, providing reliable data support for equipment attitude control and position feedback. It is widely suitable for precision measurement and control needs in multiple fields such as automation, construction machinery, and automotive electronics.
Description
Tags
The 533450-A25H3X0-3 angle sensor is a safety-grade non-contact sensing device belonging to the 533 series. Leveraging high-precision magnetic sensing technology, it accurately captures rotational angle changes and converts them into stable electrical signal outputs. Its non-mechanical contact structural design fundamentally reduces component wear and clogging issues. Combined with a high protection level and wide temperature adaptability, it can work continuously and stably in various harsh industrial and automotive environments, providing reliable data support for equipment attitude control and position feedback. It is widely suitable for precision measurement and control needs in multiple fields such as automation, construction machinery, and automotive electronics.
Core Features
Non-Contact Measurement: Adopts magnetic sensing principle, no mechanical friction loss, extends equipment service life, and avoids downtime costs caused by frequent maintenance.
High-Precision Stable Output: 12-bit resolution combined with ≤0.1° repeatability, linear error controlled within a reasonable range, ensuring the accuracy and consistency of angle data collection.
Flexible Voltage Adaptation: Supports multiple specifications of power supply voltage and signal output modes, which can be customized and adjusted according to actual application scenarios, with strong compatibility.
Technical Parameters
| Parameter Category | Specifications |
| Model No. | 533450-A25H3X0-3 |
| Supply Voltage | Nominal 24VDC, Wide Voltage Adaptation +9~34VDC (Optional) |
| Signal Output | Analog Output (Optional 0.2~4.75VDC, 0.5~9.5VDC, 4~20mA) |
| Current Consumption | 25mA~60mA (Depends on Output Specification) |
Applicable Scenarios
With its high stability and multi-scenario adaptability, this product has been applied in various industries. Core application scenarios include:
Automotive Electronics: Suitable for steering wheel angle monitoring, throttle/brake pedal position feedback, suspension system attitude detection. It provides accurate data for ESP and electric power steering systems to ensure driving safety.
Construction Machinery: Can be used for boom angle monitoring, hydraulic valve control, and steering mechanism positioning of excavators, cranes and other equipment, preventing over-limit operations and improving operation precision and safety.
