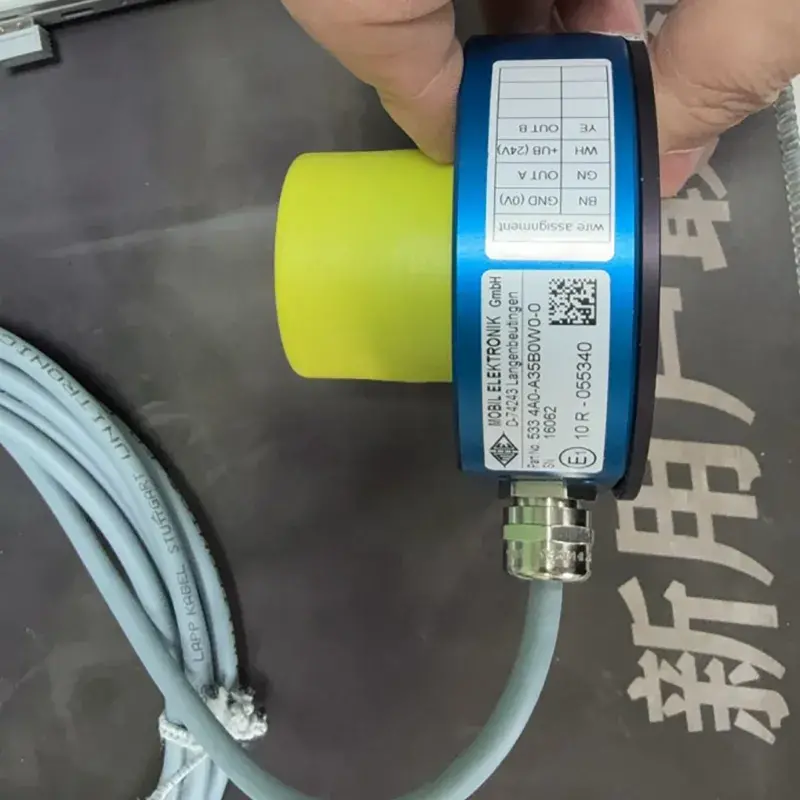

Engineered by NOBEL ELEKTRONIK GmbH, the 533 40-A35B0W0-0 angular encoder delivers high-precision angular position feedback for demanding industrial environments. Its rugged construction and reliable performance make it ideal for applications where accurate rotational sensing is critical, even under harsh conditions.
Engineered by NOBEL ELEKTRONIK GmbH, the 533 40-A35B0W0-0 angular encoder delivers high-precision angular position feedback for demanding industrial environments. Its rugged construction and reliable performance make it ideal for applications where accurate rotational sensing is critical, even under harsh conditions.
Key Features
High Resolution: Delivers precise angular position data for closed-loop control systems.
Rugged Design: IP-rated protection against dust, moisture, and mechanical shock, suitable for heavy industrial use.
Technical Specifications
| Parameter | Details |
| Model | 533 40-A35B0W0-0 |
| Manufacturer | NOBEL ELEKTRONIK GmbH |
| Resolution | Up to 19-bit (0.0019° angular resolution) |
| Signal Output | SSI (Synchronous Serial Interface) + Incremental A/B/Z signals |
| Supply Voltage | 10–30 V DC |
| Shaft Diameter | 40 mm (standard) |
Ideal Applications
This encoder excels in industries requiring precision and durability:
Wind Turbines: Pitch control and yaw angle monitoring for renewable energy systems.
Installation Notes
Electrical Wiring: Follow the color-coded wire assignment (labeled on the encoder housing) for correct signal connection.
Grounding: Properly ground the encoder to prevent electrical noise and ensure signal integrity.
